  1. Monitor the WEKA Cluster
  2. WEKA Home - The WEKA support cloud

Manage alerts and integrations

PreviousExplore cluster insights and statisticsNextEnforce security and compliance

Last updated 1 year ago

After deploying the Local WEKA Home, you can configure it to send specific alerts or events through Email (SMTP), PagerDuty, or SNMP Traps (v1/v2c/v3). For example, you can set it to email alerts to a specific address when the cluster's data protection level falls below the configured threshold.

Set the Local WEKA Home to send events and alerts

Setting the Local WEKA Home to send events and alerts includes the following procedures:

  1. Create an integration: Set the destination on the Integration page.

  2. Create rules: On the Rules page, select the rule conditions to trigger specific alerts or events and assign the rule to the integration.

Create an integration

  1. From the menu, select Manage > Integrations.

  2. On the Integration page, select New.

  1. On the Create Integration page, select one of the destinations and set the relevant values as follows:

  1. In Name, enter a meaningful destination name for the integration.

  2. In Type, select PageDuty.

  3. In Routing Key, set the routing key of your pager duty.

  4. Verify that the integration is enabled (the arrow is green).

  5. Select Save Integration.

  1. In Name, enter a meaningful destination name for the integration.

  2. In Type, select Email.

  3. In Destination, set the destination email address.

  4. Verify that the integration is enabled (the arrow is green).

  5. Select Save Integration.

  1. In Name, enter a meaningful destination name for the integration.

  2. In Type, select SNMP Trap.

  3. In the Version, select the required SNMP version to use with your SNMP-based tool.

  4. Set the values of the properties required according to the selected version:

    • v1: SNMP version 1, which only requires the SNMP server hostname or IP address and a plaintext community.

    • v2c: SNMP version 2c, similar to SNMP v1, but adds support for 64-bit counters.

    • v3_NoAuthNoPriv: SNMP version 3 with security of a user name and EngineID, but without authentication and privileges.

    • v3AuthNoPriv: SNMP version 3 with security of a user name, EngineID, and authentication but without privileges.

    • v3AuthPriv: SNMP version 3 with security of a user name, EngineID, authentication, and privileges.

  5. Verify that the integration is enabled (the arrow is green).

  6. Download the WEKA_HOME-MIB.txt file and apply it in your SNMP system.

  7. Select Save Integration.

Create a rule

  1. From the menu, select Manage > Rules.

  2. On the Rules page, select New.

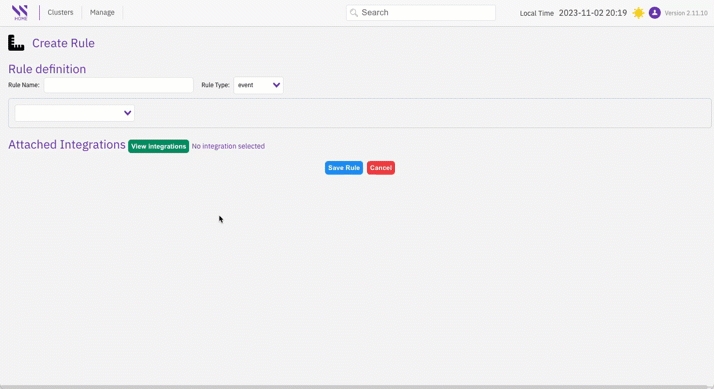

  1. On the Create Rule page, do the following:

    1. Enter a meaningful name for the rule.

    2. Select the event or alert type from Rule Type and set the entity, operator, and condition, for the selected rule type.

    3. Select View integrations and select the required integration (destination) from the list.

    4. Select Save Rule.

    A green confirmation message appears for a successful setting.

Examples

Create an event rule that sends all critical events to a predefined email

Create an alert rule that sends all tiering connectivity alerts to a predefined email

Access the Local WEKA Home portal with an admin account and the password (obtained. during the LWH deployment. See ).

5. Access the Local WEKA Home portal and Grafana

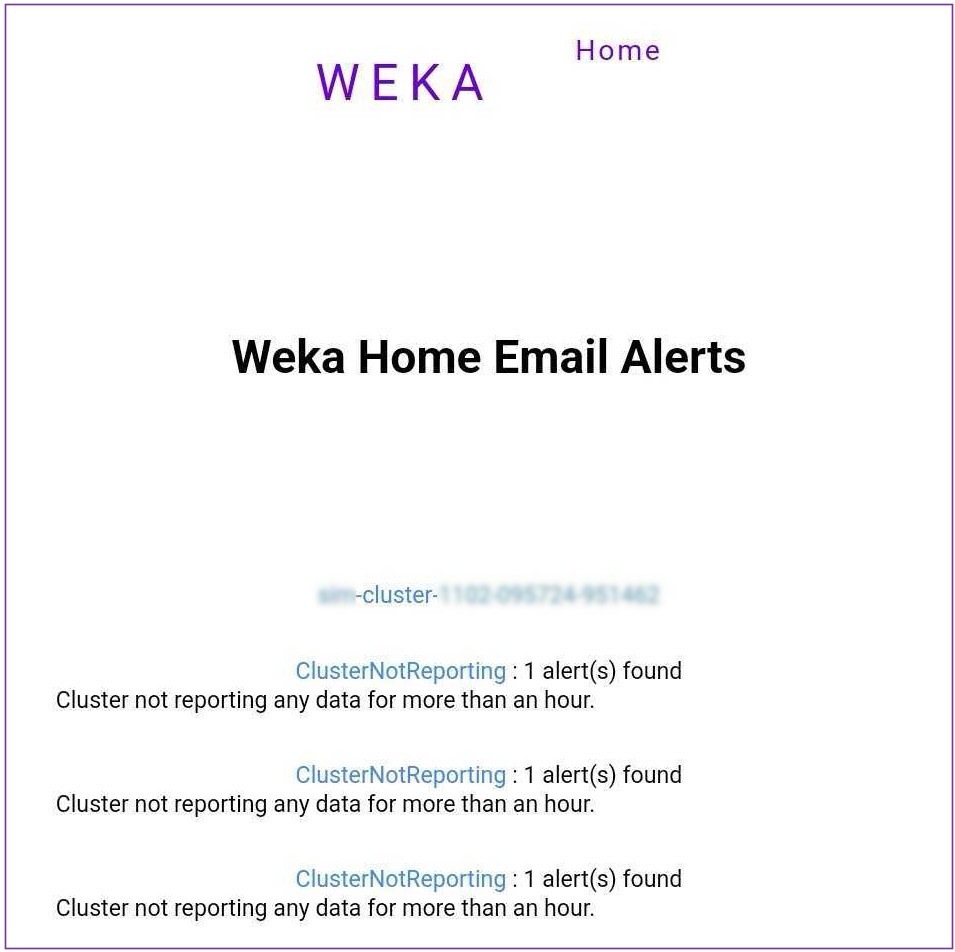

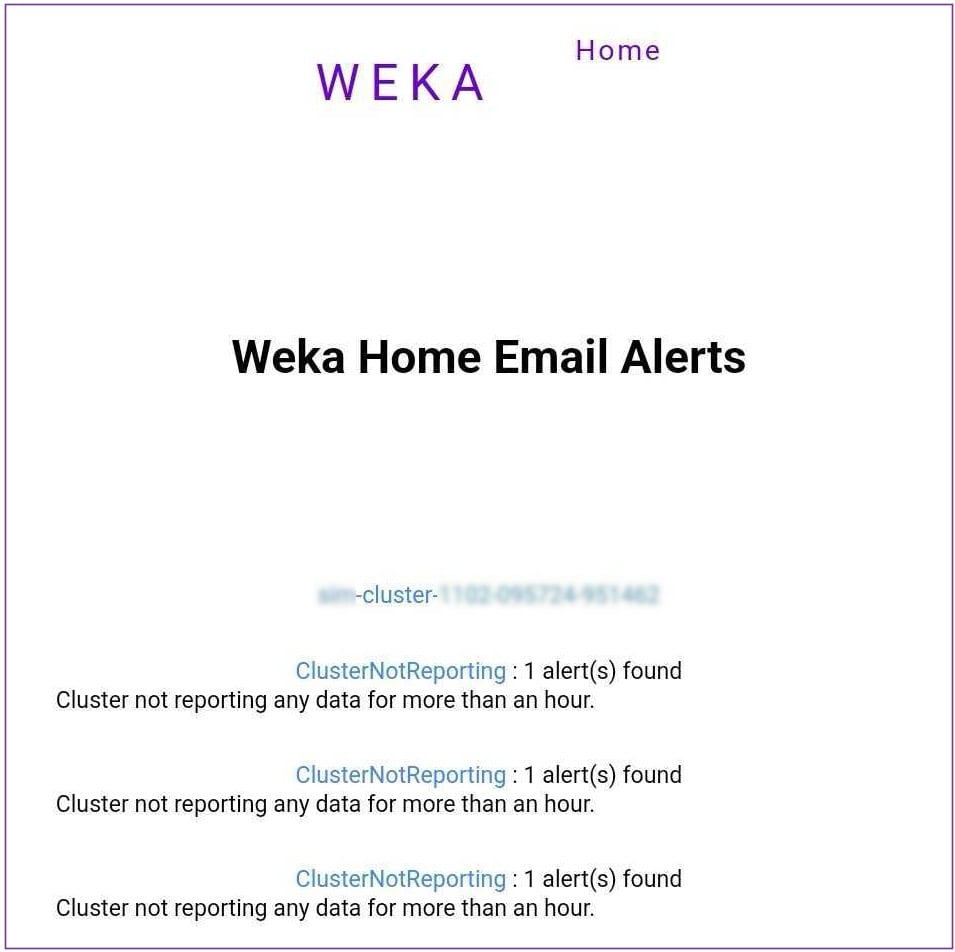

WEKA Home email alert example

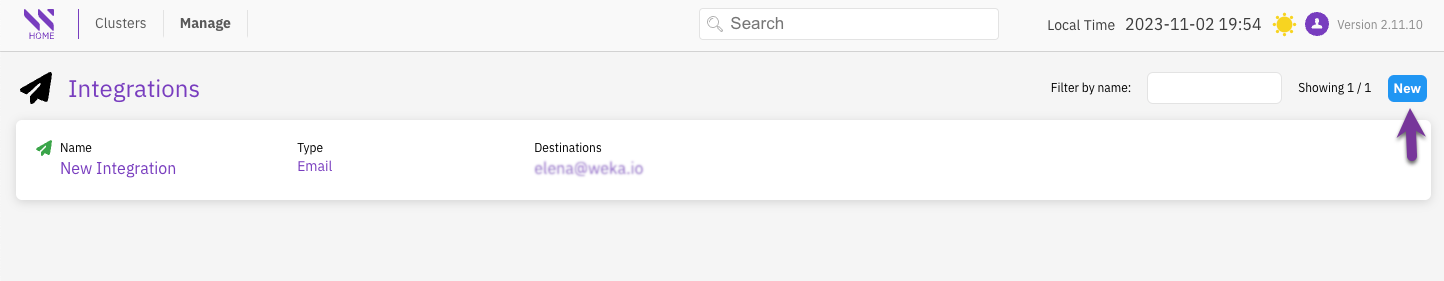

Integrations page

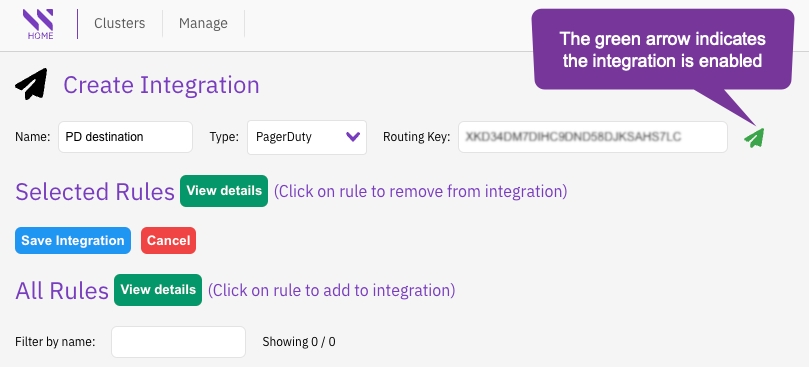

PagerDuty integration

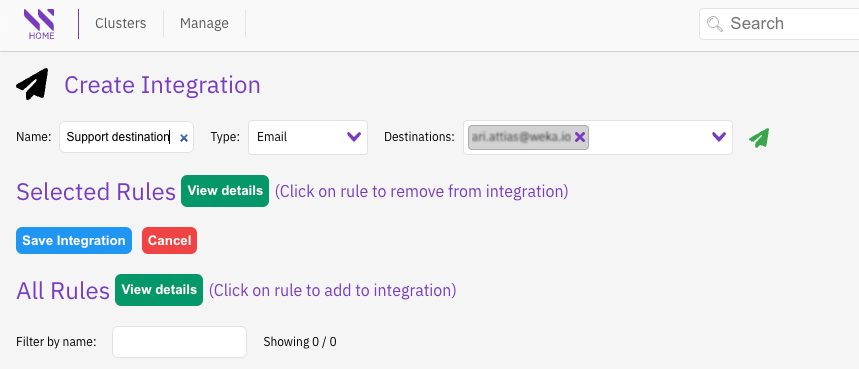

Email integration

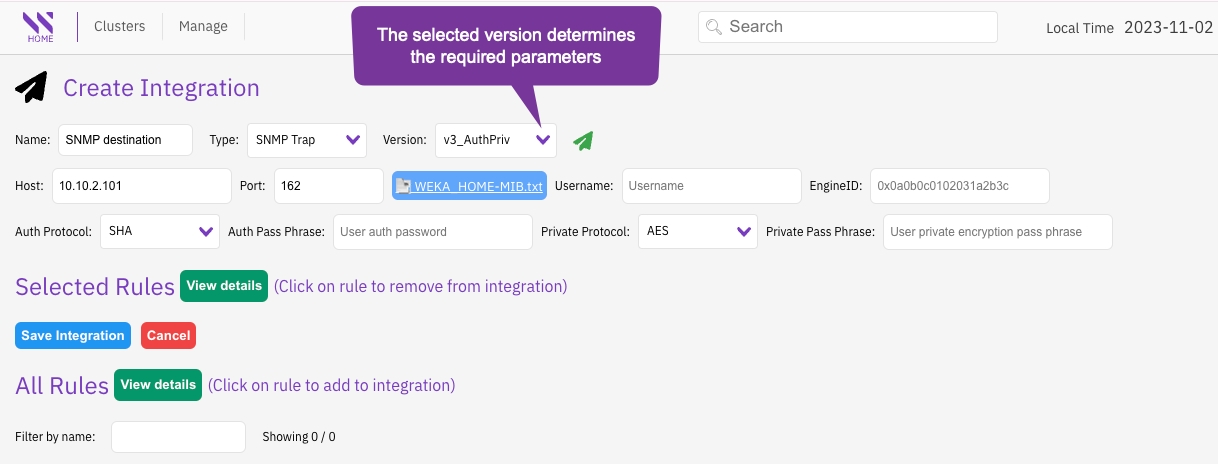

SNMP integration: v3_AuthPriv (v3 with authentication and privileges settings)

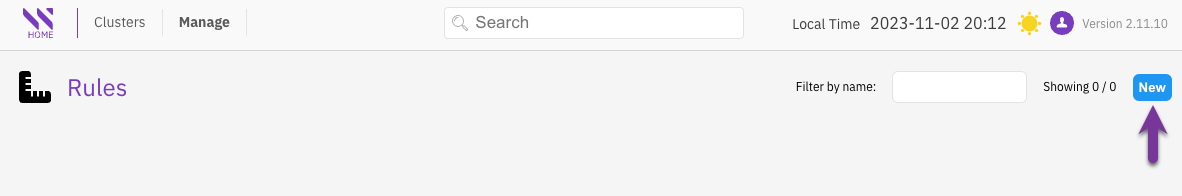

Rules page
Create an event rule example
Create an alert rule example
