Getting started with WEKA REST API

The WEKA system provides a RESTful API that allows you to automate operations and integrate them into your workflows or monitoring systems. A solid understanding of the relevant WEKA CLI commands and parameters is important when working with the REST API. For example, when creating a filesystem using the POST /fileSystems service, refer to the corresponding CLI documentation for guidance.

Access the REST API

You can access the REST API using one of the following methods:

• Direct access: Use port 14000 and the URL /api/v2.

• Through the cluster: Browse to https://<cluster name or IP>:14000/api/v2/docs.

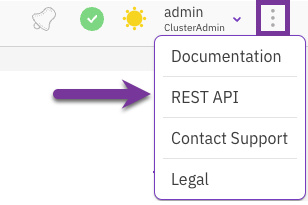

• Through the WEKA GUI: Select the three dots on the upper right menu and select REST API.

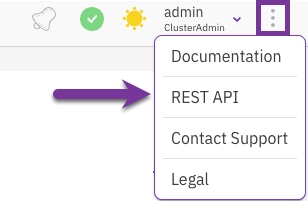

  Access the REST API through the WEKA GUI

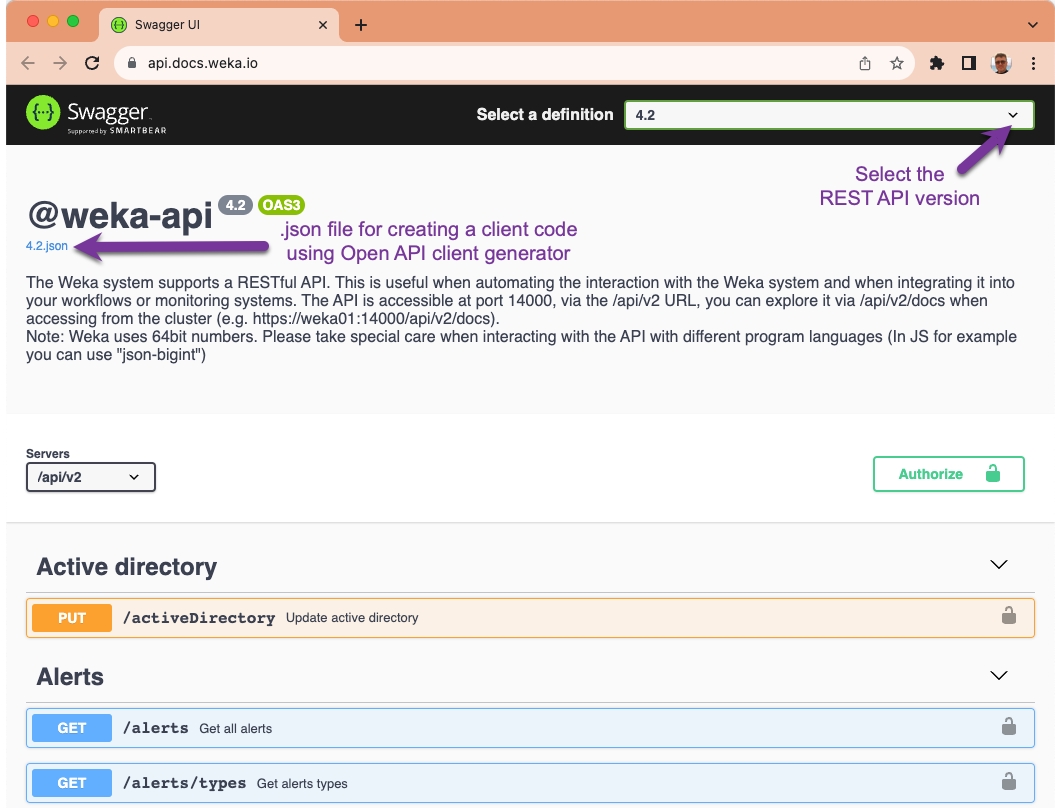

• WEKA static API: Browse to api.docs.weka.io and select the required REST API version from the definition selector. You can also generate client code by using the OpenAPI client generator with the corresponding .json definition file.

api.docs.weka.io

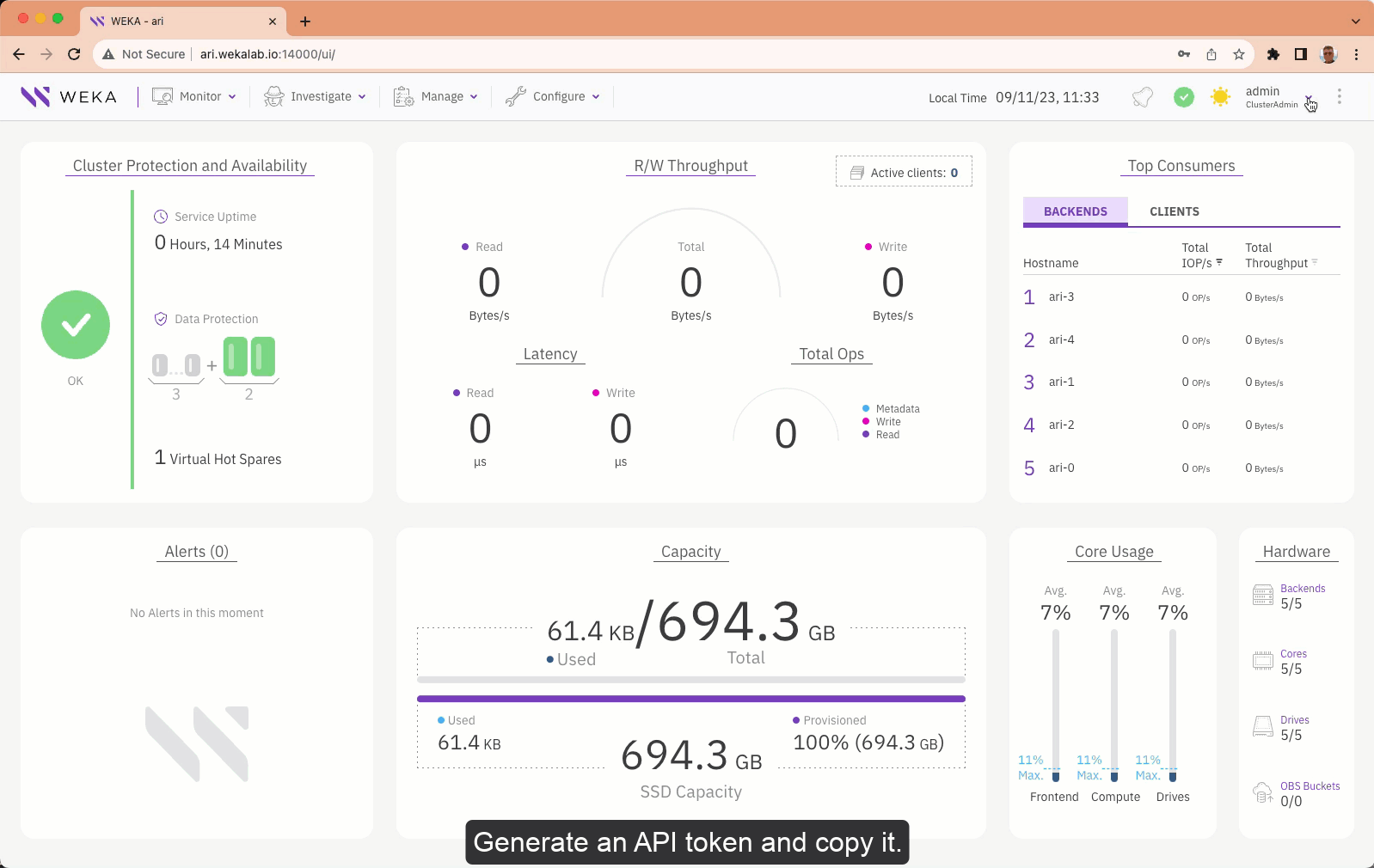

Explore the REST API through the GUI

Explore the REST API through the GUI

Obtain an access token

To use the WEKA REST API, provide an access or refresh token.

You can generate an access or refresh for the REST API usage through the CLI or the GUI. See Obtain authentication tokens.

You can also call the login API to obtain access or refresh tokens through the API, providing it with a username and password.

If you already obtained a refresh token, you can use the login/refresh API to refresh the access token.

Login

Python example calling the login API

import requests

url = "https://weka01:14000/api/v2/login"

payload="{\n    \"username\": \"admin\",\n    \"password\": \"admin\"\n}"
headers = {
  'Content-Type': 'application/json'
}

response = requests.request("POST", url, headers=headers, data=payload)

print(response.text)

Refresh

The response includes the access token (valid for 5 minutes) to use in the other APIs requiring token authentication, along with the refresh token (valid for 1 year), for getting additional access tokens without using the username/password.

Login/Refresh Response

{
  "data": [
    {
      "access_token": "ACCESS-TOKEN",
      "token_type": "Bearer",
      "expires_in": 300,
      "refresh_token": "REFRESH-TOKEN"
    }
  ]
}

Call the REST API

Once you obtain an access token, you can call WEKA REST API commands with it. For example, you can query the cluster status:

Python example calling cluster status API

import requests

url = "https://weka01:14000/api/v2/cluster"

payload={}
headers = {
  'Authorization': 'Bearer REPLACE-WITH-ACCESS-TOKEN'
}

response = requests.request("GET", url, headers=headers, data=payload)

print(response.text)

Related topics

REST API Reference Guide
