# Manage the system using the WEKA CLI The WEKA CLI is installed on each WEKA server and is available through the `weka` command. It's possible to connect to any of the servers using `ssh` and running the `weka` command. The `weka` command displays a list of all top-level commands. ## Top-level commands The WEKA CLI is installed on each WEKA server and is available through the `weka` command. Running this command displays a list of all top-level commands: ``` $ weka -h UUsage: weka [--color color] [--help] [--build] [--version] [--legal] Description: The base command for all weka related CLIs Subcommands: access-group Commands that manage the cluster access-groups agent Commands that control the weka agent (outside the weka containers) alerts List alerts in the Weka cluster cloud Cloud commands. List the cluster's cloud status, if no subcommand supplied. cluster Commands that manage the cluster dataservice Commands that manage dataservice diags Diagnostics commands to help understand the status of the cluster and its environment driver Manage Weka drivers events List all events that conform to the filter criteria fs List filesystems defined in this Weka cluster interface-group List interface groups local Commands that control weka and its containers on the local machine mount Mounts a wekafs filesystem. This is the helper utility installed at /sbin/mount.wekafs. nfs Commands that manage client-groups, permissions and interface-groups org List organizations defined in the Weka cluster s3 Commands that manage Weka's S3 container security Security commands. smb Commands that manage Weka's SMB container stats List all statistics that conform to the filter criteria status Get an overall status of the Weka cluster umount Unmounts wekafs filesystems. This is the helper utility installed at /sbin/umount.wekafs. upgrade Commands that control the upgrade precedure of Weka user List users defined in the Weka cluster version When run without arguments, lists the versions available on this machine. Subcommands allow for downloading of versions, setting the current version and other actions to manage versions. Options: --agent Start the agent service --color Specify whether to use color in output (format: 'auto', 'disabled' or 'enabled') -h, --help Show help message --build Prints the CLI build number and exits -v, --version Prints the CLI version and exits --legal Prints software license information and exits ``` The options that are common to many commands include:
OptionDescription
-J|--jsonPrints the raw JSON value returned by the cluster.
-H|--hostnameDirects the CLI to communicate with the cluster through the specified hostname or IP.
--raw-unitsSets the units such as capacity and bytes to be printed in their raw format, as returned by the cluster.
--UTCSets the timestamps to be printed in UTC timezone, instead of the local time of the server running the CLI command.
-f|--formatSpecifies the format to output the result (view, csv, markdown, or JSON).
-o|--outputSpecifies the columns to include in the output.
-s|--sortSpecifies the order to sort the output. May include a '+' or '-' before the column name to sort by ascending or descending order.
-F| --filterSpecifies the filter values for a member (without forcing it to be in the output).
--no-headerIndicates that the column header should not be shown when printing the output.
-C|--CONNECT-TIMEOUTModifies the default timeout used for connecting to the system via the JRPC protocol.
-T|--TIMEOUTModifies the default timeout for which the commands wait for a response before giving up.
--color

Controls the usage of color in the outputs. Possible values: enabled, disabled, or auto.

Default: auto. It automatically determines whether to enable color based on the output destination. If the output is a terminal that supports color, it is enabled; otherwise, it is disabled.

{% hint style="info" %} Throughout the documentation, the CLI mandatory parameters are marked with an asterisk (\*). {% endhint %} ## Commands hierarchy Most WEKA system top-level commands are the default list command for their own collection. Additional sub-commands may be available under them. **Example:** The `weka fs` command displays a list of all filesystems and is also the top-level command for all filesystems, filesystem groups, and snapshot-related operations. It is possible to use the `-h`/`--help` flags or the `help` command to display a list of available commands at each level, as shown below: {% code fullWidth="false" %} ``` $ weka fs | FileSystem | Name | Group | SSD Bu | Total | Is re | Is creat | Is remov | ID | | | dget | Budget | ady | ing | ing +------------+---------+---------+--------+--------+-------+----------+---------- | FSId: 0 | default | default | 57 GiB | 57 GiB | True | False | False ``` {% endcode %} ``` $ weka fs -h Usage: weka fs [--name name] [--color color] [--HOST HOST] [--PORT PORT] [--CONNECT-TIMEOUT CONNECT-TIMEOUT] [--TIMEOUT TIMEOUT] [--profile profile] [--format format] [--output output]... [--sort sort]... [--filter filter]... [--filter-color filter-color]... [--capacities] [--force-fresh] [--help] [--raw-units] [--UTC] [--no-header] [--verbose] Description: List filesystems defined in this Weka cluster Subcommands: add Create a filesystem remove Delete a filesystem download Download a filesystem from object store group List filesystem groups kms-rewrap Rewrap the key of Filesystem protection Commands used to manage file system protection quota Commands used to control directory quotas reserve Thin provisioning reserve for organizations restore Restore filesystem content from a snapshot security Manage filesystem security snapshot List snapshots tier Show object store connectivity for each node in the cluster update Update a filesystem Options: --name Filesystem name --color Specify whether to use color in output (format: 'auto', 'disabled' or 'enabled') -H, --HOST Specify the host. Alternatively, use the WEKA_HOST env variable -P, --PORT Specify the port. Alternatively, use the WEKA_PORT env variable -C, --CONNECT-TIMEOUT Timeout for connecting to cluster, default: 10 secs (format: 3s, 2h, 4m, 1d, 1d5h, 1w, infinite/unlimited) -T, --TIMEOUT Timeout to wait for response, default: 1 minute (format: 3s, 2h, 4m, 1d, 1d5h, 1w, infinite/unlimited) --profile Name of the connection and authentication profile to use -f, --format Specify in what format to output the result (format: 'view', 'csv', 'markdown', 'json' or 'oldview') -o, --output Specify which columns to output. May include any of the following: uid,id,name,group,usedSSD,usedSSDD,usedSSDM,freeSSD,availableSSDM,availableSSD,usedTotal,usedTotalD,freeTotal,availableTotal,maxFiles,status,encrypted,stores,auth,thinProvisioned,thinProvisioningMinSSDBudget,thinProvisioningMaxSSDBudget,usedSSDWD,usedSSDRD,reductionRatio,pendingReduction,dataReduction,reducedProcessedSize,reducedSize,kmsKey,kmsNamespace,kmsRole,processedReductionRatio (may be repeated or comma-separated) -s, --sort Specify which column(s) to take into account when sorting the output. May include a '+' or '-' before the column name to sort in ascending or descending order respectively. Usage: [+|-]column1[,[+|-]column2[,..]] (may be repeated or comma-separated) -F, --filter Specify what values to filter by in a specific column. Usage: column1=val1[,column2=val2[,..]] (may be repeated or comma-separated) --filter-color Filter rows with specific colors (red/yellow/green) (may be repeated or comma-separated) --capacities Display all capacity columns --force-fresh Refresh the capacities to make sure they are most updated -h, --help Show help message -R, --raw-units Print values in raw units (bytes, seconds, etc.). When not set, sizes are printed in human-readable format, e.g 1KiB 234MiB 2GiB. -U, --UTC Print times in UTC. When not set, times are converted to the local time of this host. --no-header Don't show column headers when printing the output -v, --verbose Show all columns in output ``` ## Connect to another server Most WEKA system commands deliver the same result on all cluster servers. However, it is sometimes necessary to run a command on a specific server. To do this, use the `-H/--hostname` option and specify the hostname or IP address of the target server. ## CLI auto-completion Using `bash` you can use auto-completion for CLI commands and parameters. The auto-completion script is automatically installed. To disable the auto-completion script, run `weka agent autocomplete uninstall` To (re-)install the script on a server, run `weka agent autocomplete install` and re-enter your shell session. You can also use `weka agent autocomplete export` to get the bash completions script and write it to any desired location. ## Standardized CLI command actions and entities `weka` commands with different names but similar meanings have been standardized. Preferred names are now documented, while aliases remain for backward compatibility. Most commands now accept both singular and plural forms. #### Standardized commands The first name in each list is the documented one, followed by its aliases. Aliases ensure existing commands and scripts remain functional. * **Actions:** * `add` (`create`, `new`) * `remove` (`destroy`, `delete`) * `attach` (`assign`) * `detach` (`unassign`) * `reset` (`unset`) * `update` (`updates`) * **Entities:** * `drive` (`drives`) * `driver` (`drivers`) * `container` (`containers`) * `alerts` (`alert`) * `task` (`tasks`) * `process` (`node`, `processes`, `nodes`) * `resources` (`resource`) * `hot-spare` (`hot-spares`, `hotspare`, `hotspares`) * `bucket` (`buckets`) * `events` (`event`) * `denylist` (`blacklist`) * `permission` (`permissions`) * `client-group` (`client-groups`, `clientgroup`, `client-groups`) * `interface-group` (`interface-groups`, `interfacegroup`, `interfacegroups`) * `service-account` (`service-accounts`, `serviceaccount`, `serviceaccounts`) * `share` (`shares`) * `list` (`lists`) * `group` (`groups`) * `snapshot` (`snapshots`) * `user` (`users`) * `policy` (`policies`) ## WEKA CLI command output colors The `weka status` command and various commands that return tables, such as `weka cluster buckets`, support colored output by default when executed in a terminal (tty). You can control the use of colors with the `--color` option or the `WEKA_CLI_COLOR` environment variable. Colors are used sparingly and consistently to indicate status: * Green: Indicates that the status is OK. * Yellow: Represents a warning or a transient state, such as initializing or rebuilding. * Red: Indicates an error or an issue that needs attention. {% hint style="info" %} Colors are only used when formatting in "human" formats (such as plain text). They are not applied when the output is in machine-readable formats such as JSON, CSV, or Markdown. {% endhint %} ### `--color` option usage The `--color` option controls the usage of color in the outputs. It expects one of the following values: * **enabled**: Forces color output to be enabled, regardless of the output destination. * **disabled**: Disables color output entirely. * **auto**: Automatically determines whether to enable color based on the output destination. If the output is a terminal that supports color, it is enabled; otherwise, it is disabled. The **Default:** `auto` When the `auto` value is selected, the [`NO_COLOR`](#user-content-fn-1)[^1] environment variable is also respected. If `NO_COLOR` is set in the environment, color output is disabled, regardless of the output destination. ### `WEKA_CLI_COLOR` environment variable usage This environment variable can set the color output with the same possible values as the `--color` parameter (`enabled`, `disabled`, `auto`). However, if the `--color` parameter is specified, it overrides the `WEKA_CLI_COLOR` environment variable. ## Cluster status The `weka status` command displays the overall status of the WEKA cluster. Examples: {% tabs %} {% tab title="1. Healthy" %}

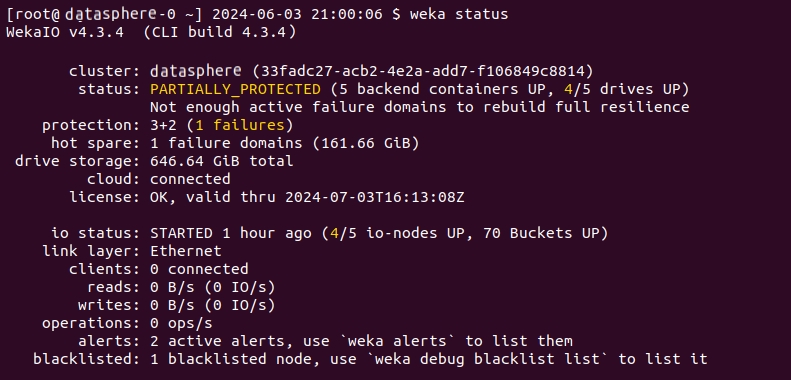

{% endtab %} {% tab title="2. Partially protected" %}
{% endtab %} {% tab title="3. Rebuilding" %}

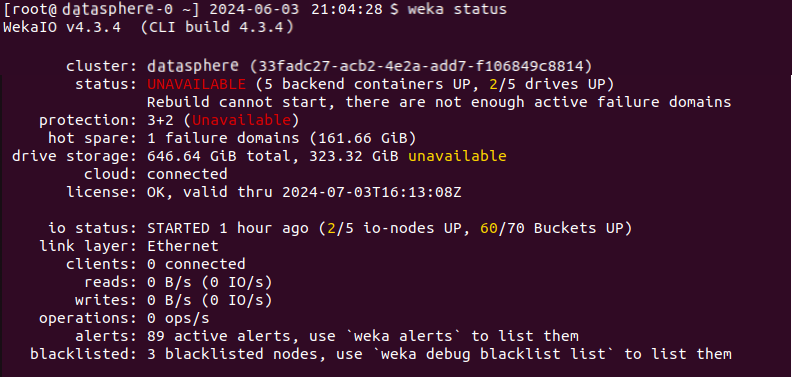

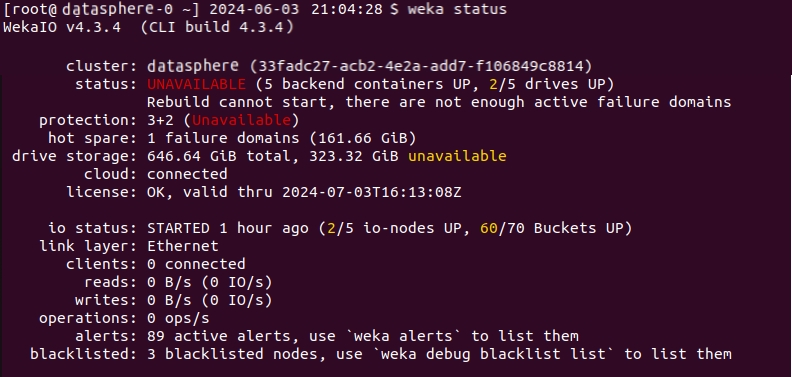

{% endtab %} {% tab title="4. Unavailable" %}
{% endtab %} {% endtabs %} [^1]: The `NO_COLO`R environment variable is a indicates that command-line applications should not produce any colored output. This is useful for users who prefer or require plain text output, such as in scripts or when using terminal environments that do not support colored text.
