# WEKA native multi-tenancy management

## Overview

WEKA native multi-tenancy enables multiple independent tenants to share a single cluster while maintaining strict logical isolation for users, data, and policies. Tenants can have dedicated network spaces, per-tenant security controls, encryption per tenant, QoS, capacity quotas, and elastic resource sharing.

The architecture delivers VPC-like networking flexibility within a single cluster. Each tenant maps to its own network namespaces and VLANs, enabling overlapping IP address ranges and custom subnets within a single WEKA cluster.

The platform is designed to serve tenants of any scale, from small 1 TB workloads to very large multi-petabyte deployments, simultaneously on the same hardware footprint. Tenants share CPU, memory, and NVMe drives while receiving predictable, policy-enforced performance through per-tenant QoS caps and capacity quotas.

<div data-with-frame="true"><figure><img src="/files/JxfeuoeL9MS6aTw04HWq" alt=""><figcaption><p>WEKA native multi-tenancy architecture</p></figcaption></figure></div>

## WEKA native multi-tenancy: key concepts

Native multi-tenancy allows multiple isolated tenants to run on the same physical infrastructure. While tenants share CPU, memory, and drives, WEKA enforces strict isolation in the datapath, and control plane.

Native multi-tenancy supports the following features:

* **Scale:** Tenants can scale from 1TB in size to multi-PB and they can coexist on the same cluster and scale seamlessly through resource elasticity in a cluster.
* **Network Isolation:** Tenants operate within dedicated network spaces (VLANs), each with its unique IP range. This setup allows overlapping IP addresses among different tenants. Additionally, a single tenant can utilize multiple network spaces.
* **Per-tenant identity:** Each tenant can integrate with its own LDAP or Active Directory server for independent directory services.
* **Tenant-level security:** Each tenant can configure a custom Key Management System (KMS) for independent encryption.
* **Multi-tenant S3:** The system provides tenant-scoped S3 buckets and ensures tenant-specific capacity accounting and security mechanisms. S3 service is provided as a multi-tenant service with global network access - this means that S3 is accessible from outside network spaces while retaining security control and capacity accounting on a per-tenant basis. (S3 objects and buckets belong to specific tenants and are managed by tenant security definitions and control.)
* **Quality of Service (QoS):** Cluster Administrators can set performance limits on per tenant basis, such as maximum throughput (MB/s) and IOPS, to prevent "noisy neighbor" behavior and ensure predictable performance for each tenant.

<div data-with-frame="true"><figure><img src="/files/GER9Dzsve7Ew0IH9sFbj" alt="" width="375"><figcaption><p>Tenant-supported entities</p></figcaption></figure></div>

### Network Isolation through network spaces

A network space serves as a cluster-level boundary defined by a Name, IP Range, and VLAN ID, linking the physical network to a logical tenant. WEKA uses these spaces to provide enhanced security and connectivity features, including:

* **Traffic segmentation and security:**
  * **VLAN mapping:** Each space is assigned a specific VLAN, and the system validates the source VLAN of incoming traffic to ensure it matches the tenant's designated network space.
  * **Routing isolation:** Each tenant operates under its own distinct routing domain, ensuring that traffic is contained and preventing cross-tenant leakage.
  * **Dedicated POSIX endpoints:** Network spaces provide isolated datapath endpoints for POSIX filesystem traffic within the tenant's private network boundary.
* **Global and protocol connectivity:**
  * **Default network access:** The cluster maintains a default network for backend communication and S3 protocol access.
  * **Protocol differentiation:** While filesystem access is routed through tenant-specific VLANs and trunk ports, S3 access can be provided through the cluster's default network.
* **IP and connectivity flexibility:**
  * **Overlapping IP support:** Tenants can share identical IP ranges without conflicts by using distinct network spaces isolated by VLANs (for example, Tenant 1 and Tenant 2 sharing the `10.100.x.x` range).
  * **Multi-network assignment:** A single tenant can connect to multiple spaces to:
    * Isolate data traffic from management services like LDAP or KMS.
    * Support clients residing on different physical VLANs.
    * Provide redundant network paths for high availability.

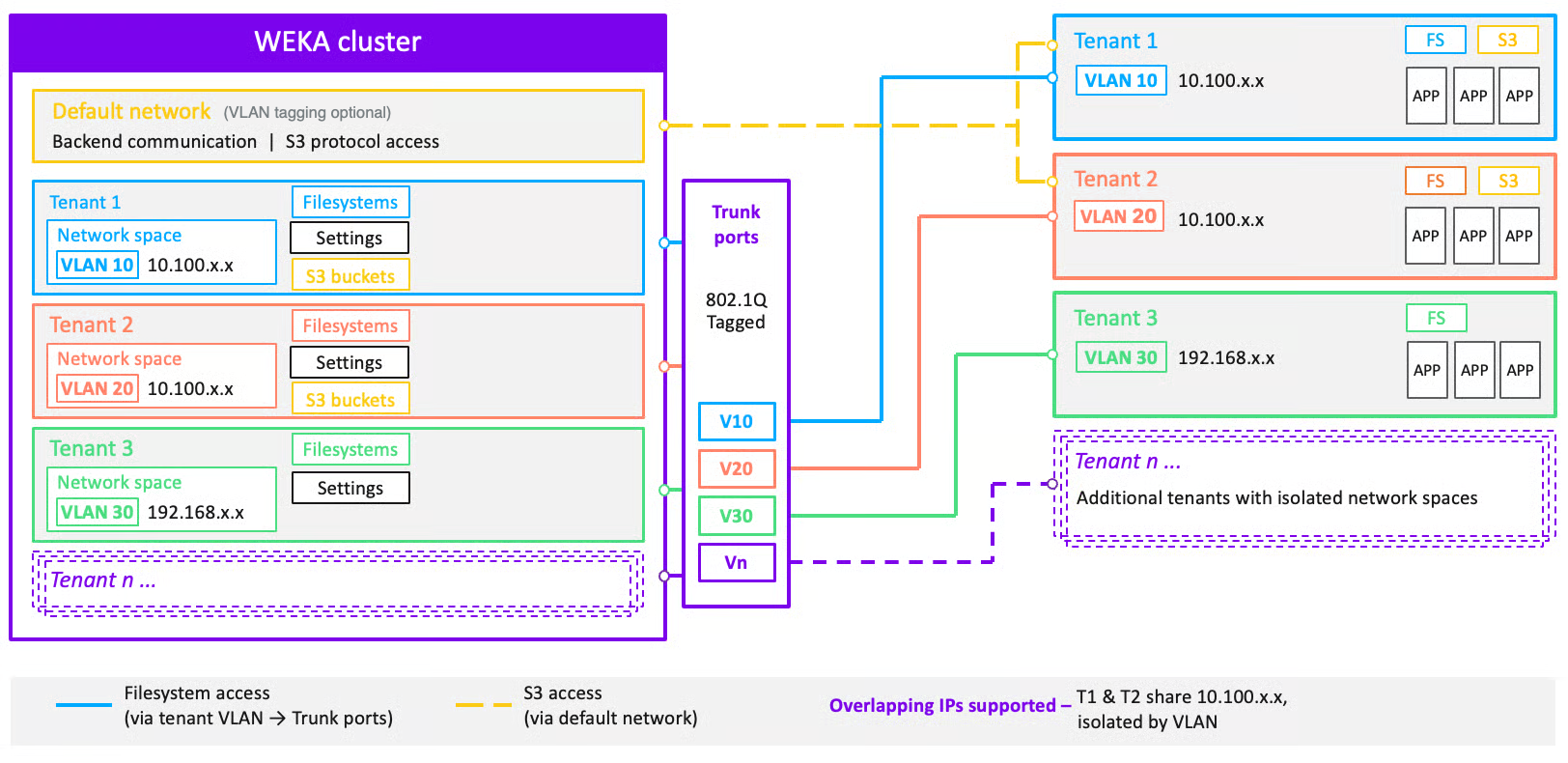

<div data-with-frame="true"><figure><img src="/files/pSko5iRJor2PZzaxtPXG" alt=""><figcaption><p>Multi-tenancy networking</p></figcaption></figure></div>

### Policy enforcement

When a cluster administrator links one or more network spaces to a tenant, WEKA enforces the following security controls:

* **VLAN validation:** Mount operations succeed only when they originate from one of the tenant's assigned network spaces.
* **Access blocking:** WEKA blocks any connection attempt from outside the assigned VLANs, even if the user provides valid credentials.
* **Protocol endpoints:** The system provides S3 protocol endpoints that are available cluster-wide. Unlike datapath isolation for other protocols, these S3 endpoints do not reside within a specific network space.

## Cluster-level vs tenant-level responsibilities

WEKA native multi-tenancy enforces a distinct separation between cluster-level and tenant-level operations. This separation ensures administrative isolation and prevents unintended access across tenants.

### **Cluster-level responsibilities (ClusterAdmin)**

The cluster administrator manages the system's physical fabric and the high-level logical boundaries between tenants. A user with the `ClusterAdmin` role performs the following tasks:

* **Manages infrastructure:** This includes overseeing physical hardware, nodes, drives, and system-wide upgrades.
* **Defines network primitives:** The administrator creates and maintains virtual routing and forwarding (VRDF) pools and shared network endpoints.
* **Manages the tenant lifecycle:** This involves creating, renaming, and deleting tenant entities.
* **Maps network security:** The administrator attaches or detaches network spaces to tenants and enforces tenant-wide security flags such as `enforceMountToNetworkSpace`.
* **Sets resource boundaries:** This includes defining storage capacity quotas (SSD and total) and setting per-tenant quality-of-service (QoS) caps.

Cluster administrators do not have access to tenant data or filesystems, but they control the resources and boundaries within which tenants operate.

### **Tenant-level responsibilities (TenantAdmin)**

The tenant administrator manages the data and user lifecycle strictly within their assigned logical boundary. A user with the `TenantAdmin` role performs the following tasks:

* **Manages identity:** This involves overseeing tenant-scoped users, groups, and LDAP/AD configurations.
* **Provisioning data:** The administrator creates and manages filesystems and S3 buckets for the tenant.
* **Controls encryption:** This includes configuring tenant-specific key management system (KMS) settings and managing encryption keys for tenant filesystems.
* **Governs local security:** The administrator manages datapath access policies, including generating mount tokens and access control lists (ACLs) for tenant-owned resources.

Tenant administrators cannot create or modify cluster-level resources, such as network spaces or other tenants.

### **Interaction between the roles**

The multi-tenancy model relies on a provider-consumer relationship where certain one-time setup tasks occur through internal processes:

* **The network model:** The cluster administrator provides the infrastructure (network spaces), and the tenant administrator consumes those endpoints to provide datapath access to their clients.
* **Security overlap:** While the tenant administrator manages filesystem-level authentication, the cluster administrator can override this by enforcing tenant-wide mandatory authentication (`fsAuthRequired`).

## Choose an isolation model

Use native multi-tenancy for logical isolation in a single cluster. It maximizes performance and capacity elasticity.

Use composable clusters for physical isolation per tenant. It deploys dedicated Kubernetes-based WEKA clusters.

Evaluate the following criteria to determine the appropriate architecture for a specific environment.

**Decision logic: select a multi-tenancy model**

{% tabs %}
{% tab title="Use native multi-tenancy when:" %}

* **High-density hosting:** You must host many tenants on a single shared infrastructure.
* **Mixed scale:** Your environment spans tenants of very different sizes, from small 1–20 TB workloads to multi-petabyte deployments, and you need elastic capacity and performance sharing across them.
* **Network flexibility:** Tenants require overlapping IP addresses, customized subnets, or dedicated VLANs.
* **Operational simplicity:** You want to avoid the overhead and complexity of managing multiple underlying Kubernetes clusters.
  {% endtab %}

{% tab title="Use composable clusters when:" %}

* **Massive scale per tenant:** You manage very large tenants that consume a significant percentage of total hardware.
* **Physical Isolation:** The environment enforces strict hardware allocation, ensuring each tenant receives dedicated performance resources. These resources are physically separated, exclusively assigned, and not shared or influenced by any other tenants.
* **Kubernetes-centric operations:** Customers prefer and are equipped to operate within dedicated Kubernetes-based environments.

**Related topic**

[Composable clusters for multi-tenancy in Kubernetes](/kubernetes/composable-clusters-for-multi-tenancy-in-kubernetes.md)
{% endtab %}
{% endtabs %}

## Upgrade: Transition to native multi-tenancy

As part of the upgrade to this version, the system transitions to a native multi-tenancy model. Existing organizations are upgraded and replaced by tenants, with no data copy required. All existing data remains fully accessible and continues to function as before.

**Role conversion:** Users with the `OrgAdmin` role are converted `TenantAdmin`.

**API and CLI deprecation:** Commands and routes that use `org` terminology are deprecated and will transition to `tenant` syntax.

Example CLI mapping:

* Deprecated: `weka org add <name>`
* Replacement: `weka tenant add <name>`

The upgrade process is performed by the Customer Success Team.


---
