WEKA containers architecture overview
Overview of WEKA's container-based architecture, where interconnected processes within server-hosted containers provide scalable and resilient storage services in a cluster.
Cluster architecture basics
In the WEKA system, servers operate as cluster members, each server hosting multiple containers. These containers run software instances, referred to as processes, that collaborate and communicate within the cluster to deliver robust and efficient storage services. This architecture ensures scalability and fault tolerance by distributing storage functionality across interconnected containers.
Process types and core requirements
The WEKA system uses different types of processes, each dedicated to specific functions:
Drive processes: A backend process that manages SSD drives and handle IO operations to drives. These processes are fundamental to storage operations and each requires a dedicated core to ensure optimal performance.
Compute processes: A backend process that handles filesystems, cluster-level functions, and IO from clients. Each compute process requires a dedicated core to ensure consistent processing power for these critical operations.
Frontend processes: A client process that manages POSIX client access and coordinates IO operations with compute and drive processes. Each frontend process requires a dedicated core to maintain responsive client interactions.
Management process: A backend process that oversees overall cluster operations. It has lower resource demands and can share cores. The process uses kernel networking and unallocated OS-available cores.

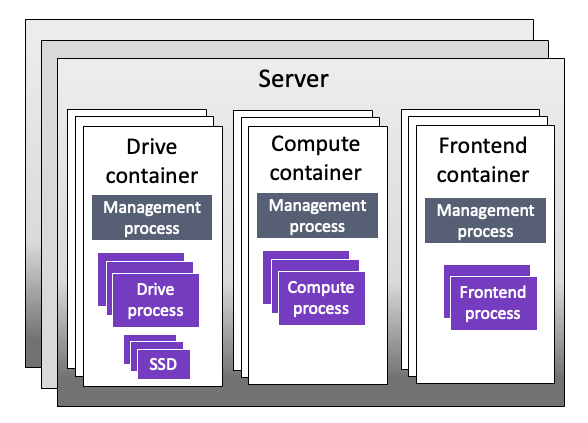

Multi-container backend (MCB) architecture
In the WEKA cluster, each server implements a multi-container backend architecture where containers are specialized by process type: drive, compute, or frontend.
Benefits of MCB architecture
Non-Disruptive Upgrade (NDU) capabilities:
Enables true non-disruptive upgrades where containers can run different software versions independently without system interruption
Supports individual container rollback without impacting cluster operations
Maintains continuous network control plane access throughout the upgrade process, ensuring uninterrupted client service
Optimized hardware utilization:
Supports up to 64 WEKA cores per server
Multiple containers per process type
Flexible core allocation across containers
Up to 19 cores per container
Improved maintenance operations:
Selective process management
Ability to maintain drive processes while stopping compute and frontend processes
System limitations and specifications
Process limits
Total processes per cluster: 65,534 (includes all process types: management, drive, compute, and frontend).
Maximum management processes: 32,767.
Maximum drive processes: 62,244.
Server and container limits
Each server has resource limits that affect how many containers it can run and how cores are allocated:
Maximum WEKA cores per server: 64
Maximum cores per container: 19
Maximum containers of any type per server: 32
Within this total, the maximum frontend containers per server is 7.
