Deploy Local WEKA Home v4.x on K8s

Learn how to deploy, upgrade, configure, and troubleshoot Local WEKA Home v4.x on Kubernetes (K8s), an on-premises, scalable observability solution for WEKA clusters.

Overview

The Local WEKA Home (LWH) deployment provides an on-premises observability and monitoring solution for WEKA clusters, designed for organizations that prefer to operate within their own infrastructure instead of relying on the WEKA-hosted cloud service. By running on a Kubernetes (K8s) cluster, this deployment model offers enhanced scalability, resilience, and control over system resources and data.

Deploying LWH on K8s enables support for scale-out environments and large cluster configurations, unlike the lightweight k3s-based packages that are optimized for single-server or minimal setups. This architecture leverages Kubernetes' orchestration capabilities for high availability, automated recovery, and simplified lifecycle management of the LWH components.

The deployment is packaged and managed through a Helm Chart, ensuring a consistent, reproducible, and upgradeable installation process.

Solution architecture

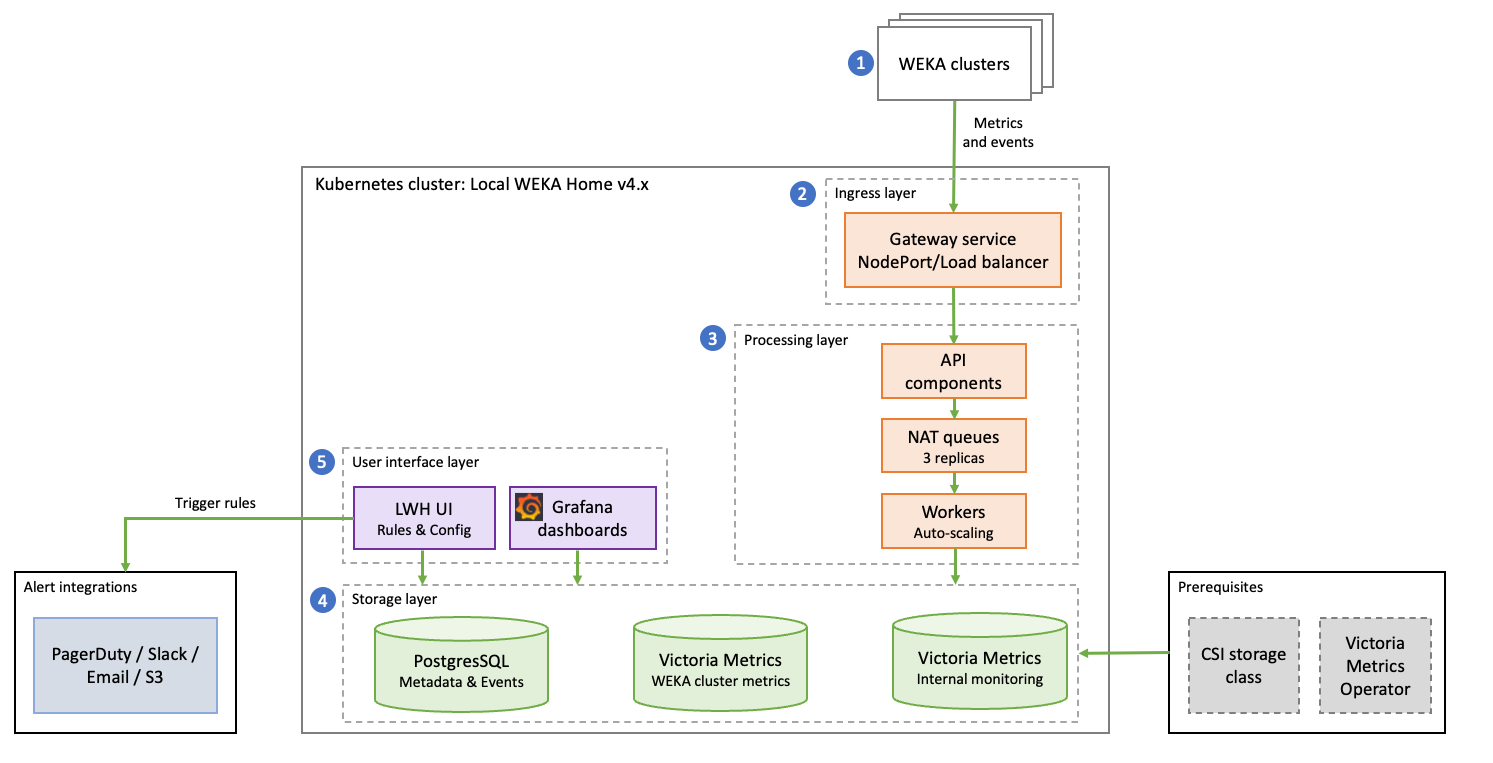

The diagram below illustrates the overall solution architecture and how the core components interact within the Kubernetes (K8s) environment.

Architecture components

The Local WEKA Home v4.x solution ingests data from registered WEKA clusters and processes it through several key layers:

1. Data ingestion layer

WEKA Clusters send metrics, events, and alerts to the Local WEKA Home (LWH) API endpoints. Each cluster registers with LWH by providing public keys and cluster information during the initial connection.

2. API and ingress layer

API components handle HTTP ingestion and routing through various services:

Support multiple ingress controllers: ALB, Traefik, and Nginx.
Alternatively, use aggregated Envoy-based gateway service for simplified routing to underlying services.
Can be exposed as NodePorts (HTTP or HTTPS) for compatibility with different K8s networking configurations.
API endpoints receive data from WEKA clusters and forward it to the persistent queue layer.

3. Processing layer

NATS (persistent queues) provides durable message storage and buffering:

Runs with 3 replicas by default for high availability.
Stores incoming API calls from WEKA clusters before database ingestion.
Uses JetStream for persistent file storage backed by CSI storage.
Configured to handle up to 100,000 nodes in the default installation.
Ensures no data loss during processing spikes or downstream service interruptions.

Worker Services process data from NATS queues:

Stats Workers: Process statistical data and metrics from WEKA clusters.
- Configured with autoscaling (default: scales based on load).
- Default deployment: ~40 cores required for processing 40,000 nodes.
- Each WEKA process generates approximately 2,000 time series.
Other Workers: Handle events, alerts, and rule evaluation.

4. Storage layer

The storage layer consists of multiple specialized databases:

Postgres Database (maindb, eventsdb, supportdb)

Stores cluster metadata and registration information.
Maintains public keys provided by WEKA clusters during registration.
Persists event and alert data.
Holds system configurations and user-defined rules.
Single instance deployment (not redundant) with fast failover capability.

Victoria Metrics Cluster (Primary: for WEKA data)

Stores raw time-series metrics from WEKA clusters.
Converts metrics into Prometheus format.
Consists of three component types:
- vmstorage: Persistent storage nodes for time-series data.
- vminsert: Ingestion endpoints for writing metrics.
- vmselect: Query endpoints for reading metrics.
Default configuration supports up to 80,000 nodes.
Scalable through CPU, memory adjustments, or increasing stateful set size.

Victoria Metrics Monitoring Cluster (Secondary: for internal monitoring)

Smaller instance dedicated to application and K8s-level monitoring.
Monitors VM cluster health, application metrics, and node performance.
Consists of the same three component types (vmstorage, vmselect, vminsert).
Independent from the primary metrics cluster.

5. User interface layer

Grafana Dashboard

Provides visualization interface for metrics and system health.
Pre-configured dashboards for WEKA cluster monitoring.
Backed by persistent storage for custom dashboard configurations.

Rules engine and UI

Configurable through the LWH UI.
Enables users to define conditions that trigger integrations:
- PagerDuty: For critical events requiring immediate attention.
- Slack/Email: For events requiring active tracking without paging.
- S3 Export: For long-term event archival.
Supports rules for both WEKA-provided alerts/events and Virtual Events/Alerts.
Virtual events and alerts are derived conditions based on ingested data patterns, not explicitly sent by WEKA clusters (pre-defined, non-configurable).

Data flow

WEKA clusters send statistics, events, and alerts to API endpoints.
API components authenticate and validate incoming data.
Data is ingested into NATS persistent queues for reliable buffering.
Worker services consume messages from queues and process them.
Processed data is written to appropriate databases:
- Metrics → Victoria Metrics Cluster (primary).
- Events/Alerts → Postgres (eventsdb).
- Cluster metadata → Postgres (maindb).
Rules engine evaluates conditions and triggers configured integrations.
Grafana queries Victoria Metrics and Postgres for visualization.
Victoria Metrics Monitoring tracks the health of all LWH components.

Sizing and scaling guidelines

Explore the sizing guidelines and scaling behavior for a Local WEKA Home deployment.

A good starting point for estimation is one CPU core for every 1,000 WEKA processes (including management processes).

The default LWH installation supports approximately 40,000 WEKA processes (cores, backends, and clients). The actual number may vary based on the backend size and the backend-to-client ratio. Each WEKA process generates an average of 2,000 time series.

The primary performance metrics are the number of statistics messages and time series processed. For simplicity, you can base your sizing on the total number of WEKA processes, as other metrics tend to scale proportionally. However, some tuning may be necessary depending on your specific setup.

Component scaling behavior

API and Worker components: These use default autoscaling settings that support up to 100,000 processes. These components scale based on the current load.
VM Cluster (VictoriaMetrics): The cluster is configured by default to handle up to 80,000 processes. For higher loads, you may need to adjust CPU, memory, or the stateful set size.
NATS: This is configured by default to manage up to 100,000 processes.
Postgres: The Postgres database typically has low utilization and is not deployed redundantly by default. This design relies on:
- Infrequent upgrades.
- A strong consistency model.
- Quick failover, assuming fast CSI reattachment (which is very fast with the WEKA filesystem).

Key tuning parameters

While the defaults handle common loads, you may need to tune the following parameters for very large or small deployments:

VMCluster: Adjust the CPU, memory, shard count, or capacity. You can often reduce these resources for smaller deployments.
Stats workers: The default memory setting is 1GiB, which might be insufficient for very high loads. As a guideline, processing stats for ~40,000 processes requires approximately 40 cores (hyperthreads).
Worker autoscaling: To prevent the Horizontal Pod Autoscaler (HPA) from resetting during redeployments, set workers.stats.autoscaling.minReplicas to match your baseline usage.

Prerequisites

Before installing the Local WEKA Home, ensure the environment meets the following requirements.

Storage

A CSI (Container Storage Interface) driver is required. The storage class must support sharing or moving volumes between nodes, such as the WEKA CSI driver or Amazon EBS.

VictoriaMetrics Operator

The VictoriaMetrics Operator needs to be installed separately before installing the Local WEKA Home chart.

This separate installation prevents issues during uninstallation, such as Custom Resource (CR) objects becoming stuck, which can occur if the operator is auto-installed as a chart dependency.

The required installation method is Helm. The Operator Lifecycle Manager (OLM) method is not supported (see VictoriaMetrics Operator note about Setup chart repository).

Procedure

Run the following Helm command to install the operator. This command:
- Installs version 0.39.1.
- Creates and uses the victoria-metrics namespace.
- Names the release vmo.
```
helm install vmo vm/victoria-metrics-operator -n victoria-metrics \
--debug --create-namespace --version 0.39.1
```

Related information

VictoriaMetrics Operator official documentation

Deployment workflow

Configure Helm values: Create a values.yaml file to customize your WEKA Home deployment.
Install the LWH: Follow one of the methods for deploying LWH on a Kubernetes environment: standard Helm installation or ArgoCD integration.
Configure networking and access: Set up ingress or gateway service access

Configure Helm values

Create a values.yaml file to customize your WEKA Home deployment. This file overrides the chart's default settings.

The following example highlights common adjustments, particularly for specifying a WEKA storage class for persistent volumes and using nodeSelector to schedule pods onto specific nodes (such as those running WEKA clients).

Refer to the complete values.yaml file in the WEKA Home Helm Chart repository for a full list of available parameters.

Example values.yaml

# -----------------------------------------------------------------
# VictoriaMetrics Components
# -----------------------------------------------------------------
vmstorage:
  # Use a WEKA filesystem storage class
  storageClassName: storageclass-wekafs-dir-api
  # Schedule pods to nodes with this label
  nodeSelector:
    "weka.io/supports-clients": "true"
  # Adjust resource requests and limits as needed
  resources:
    requests:
      memory: "16Gi" # Default is 16Gi
      cpu: 12         # Default is 4
    limits:
      memory: "32Gi"
      cpu: 16         # Default is 8

vmselect:
  storageClassName: storageclass-wekafs-dir-api
  nodeSelector:
    "weka.io/supports-clients": "true"

vminsert:
  nodeSelector:
    "weka.io/supports-clients": "true"

# -----------------------------------------------------------------
# VictoriaMetrics Monitoring Components
# -----------------------------------------------------------------
vmstorageMonitoring:
  enabled: true
  nodeSelector:
    "weka.io/supports-clients": "true"
  storageClassName: storageclass-wekafs-dir-api

vmselectMonitoring:
  nodeSelector:
    "weka.io/supports-clients": "true"
  storageClassName: storageclass-wekafs-dir-api

vminsertMonitoring:
  nodeSelector:
    "weka.io/supports-clients": "true"

# -----------------------------------------------------------------
# WEKA Home API and Workers
# -----------------------------------------------------------------
api:
  forwarding:
    enabled: true
    # url: "https://api.home.prod-us-east-1.weka.io"  # Default="https://api.home.weka.io"
  diagnostics:
    nodeSelector:
      "weka.io/supports-clients": "true"
    storage:
      filesystem:
        persistence:
          storageClass: storageclass-wekafs-dir-api

workers:
  stats:
    # Adjust replica count based on cluster size and load
    replicas: 15
    autoscaling:
      minReplicas: 15

# -----------------------------------------------------------------
# NATS Jetstream Configuration
# -----------------------------------------------------------------
nats:
  config:
    jetstream:
      fileStore:
        pvc:
          storageClassName: storageclass-wekafs-dir-api
    resolver:
      pvc:
        storageClassName: storageclass-wekafs-dir-api
  podTemplate:
    merge:
      spec:
        nodeSelector:
          "weka.io/supports-clients": "true"

# -----------------------------------------------------------------
# Grafana Configuration
# -----------------------------------------------------------------
grafana:
  persistence:
    storageClassName: storageclass-wekafs-dir-api
  nodeSelector:
    "weka.io/supports-clients": "true"

# -----------------------------------------------------------------
# PostgreSQL Databases (Main, Support, Events)
# -----------------------------------------------------------------
maindb:
  primary:
    persistence:
      storageClass: storageclass-wekafs-dir-api
    nodeSelector:
      "weka.io/supports-clients": "true"

supportdb:
  primary:
    persistence:
      storageClass: storageclass-wekafs-dir-api
    nodeSelector:
      "weka.io/supports-clients": "true"

eventsdb:
  primary:
    persistence:
      storageClass: storageclass-wekafs-dir-api
    nodeSelector:
      "weka.io/supports-clients": "true"

# -----------------------------------------------------------------
# Monitoring Agents (Disabled)
# -----------------------------------------------------------------
vmagent:
  enabled: false

prometheus-node-exporter:
  # Setting a non-existent label ensures it doesn't run
  nodeSelector:
    "non-existing-label": "non-existing"
  enabled: false

# -----------------------------------------------------------------
# Gateway / Ingress Configuration
# -----------------------------------------------------------------
gateway:
  port: 8000
  # service:
  #   type: NodePort # Default is ClusterIP
  # nodePort: 30080

  # --- TLS Example ---
  # tls: true
  # tlsNodePort: 30443
  # secretName: "wekahome-gateway" # Must be pre-created by user

Configure gateway TLS (Optional)

If you enable TLS for the gateway (gateway.tls: true), you must manually create a Kubernetes secret containing your certificate and private key before installing the chart. The gateway.secretName value in your values.yaml must match the name of this secret.

Example TLS secret manifest

Ensure the cert.pem and key.pem data fields contain your Base64-encoded certificate and key content.

apiVersion: v1
kind: Secret
metadata:
  name: wekahome-gateway
  namespace: weka-home # Must be in the same namespace as your deployment
type: Opaque
data:
  cert.pem: (Base64-encoded certificate content)
  key.pem: (Base64-encoded private key content)

Install the LWH

You can deploy LWH on a Kubernetes environment using two primary methods: standard Helm installation or ArgoCD integration. Each method differs in setup complexity, ingress handling, and lifecycle management.

Feature

Standard Helm Installation

ArgoCD Integration

Method

Direct installation using Helm commands.

Integration with an ArgoCD application.

Requirements

Standard Helm CLI.

LWH v4.1.0-b40 or higher.

Configuration

Straightforward deployment.

Requires special handling for Helm hooks, secrets, and job lifecycle.

Secrets

Auto-generated during deployment.

Requires manual pre-creation of secrets.

Recommendation

Recommended for most standard deployments.

Suitable for environments managing applications using GitOps with ArgoCD.

Install the LWH using Helm

Use this procedure for a standard deployment of LWH using Helm commands.

The LWH Helm chart is publicly available on GitHub. The documentation on GitHub reflects the latest build. For a specific version, download the required values.yaml file directly.

Procedure

Add the WEKA Home Helm repository:

helm repo add wekahome https://weka.github.io/gohome/

Run the Helm upgrade command to install or update the chart. Specify your namespace, the chart version, and the path to your customized values.yaml file.

helm upgrade --create-namespace \
    --install wekahome wekahome/wekahome \
    --namespace weka-home \
    --version v4.2.4 \
    --values /path/to/values.yaml

Integrate the LWH with ArgoCD

Use this procedure to deploy LWH using ArgoCD.

ArgoCD integration requires version v4.1.0-b40 or higher. This method requires specific configuration adjustments because ArgoCD handles Helm charts differently than a standard Helm installation.

Helm hooks and jobs: ArgoCD uses alternative hook annotations. Job TTL (Time-To-Live) requires special handling to avoid conflicts.
Secrets: ArgoCD does not support the Helm lookup function. You must manually create all required secrets before deployment.
Ingress: Ingress updates in ArgoCD can be slow. If you use a gateway service instead of ingress, disable the ingress resource to improve update speeds.
Dashboards: LWH dashboards (starting from v4.1.0-b40) include an annotation (argocd.argoproj.io/sync-options: Replace=true) to manage ConfigMap size limits.

Procedure

Configure Helm values for ArgoCD In your values.yaml file, set the following parameters:
- Set generateSecrets: false at the top level.
- To prevent conflicts with ArgoCD's job management, set the TTL for migration jobs:
  jobs: dbMigrator: ttlSecondsAfterFinished: 0 natsMigrator: ttlSecondsAfterFinished: 0
- (Optional) If you use a gateway service and not ingress, disable ingress creation:
  ingress: # -- Enables ingress creation enabled: false
Pre-create required secrets. Because ArgoCD does not support the Helm lookup function, you must create the secrets manually.
You can use the following script as a template. Update the NAMESPACE and ARGO_APP_NAME variables to match your environment.

Creating secrets script template

# Helper: Generate an alphanumeric random string of given length
gen_random() {
  local len=$1
  # base64 gives ~1.33× bytes, so over-generate then trim
  openssl rand -base64 $((len * 2)) \
    | tr -dc 'A-Za-z0-9' \
    | head -c "$len"
  echo
}

export NAMESPACE="weka-home"
export ARGO_APP_NAME="weka-home-app" # Change this to your ArgoCD app name

export MAIN_DB_PASSWORD=$(gen_random 16)
export EVENTS_DB_PASSWORD=$(gen_random 16)
export SUPPORT_DB_PASSWORD=$(gen_random 16)
export WEKA_ADMIN_PASSWORD=$(gen_random 16)
export GRAFANA_PASSWORD=$(gen_random 16)

# 64-char alphanumeric
export JWT_KEY=$(gen_random 64)
export ENCRYPTION_KEY=$(gen_random 64)

kubectl create namespace "$NAMESPACE"

kubectl create secret generic --namespace "$NAMESPACE" wekahome-main-db-credentials \
  --from-literal=database=weka_home \
  --from-literal=hostname=${ARGO_APP_NAME}-maindb \
  --from-literal=password="$MAIN_DB_PASSWORD" \
  --from-literal=port="5432" \
  --from-literal=postgres-password="$MAIN_DB_PASSWORD" \
  --from-literal=postgres-username=postgres \
  --from-literal=postgresql-password="$MAIN_DB_PASSWORD" \
  --from-literal=postgresql-username=postgres \
  --from-literal=username=wekahome

kubectl create secret generic --namespace "$NAMESPACE" wekahome-events-db-credentials-0 \
  --from-literal=database=weka_home \
  --from-literal=hostname=${ARGO_APP_NAME}-eventsdb \
  --from-literal=password="$EVENTS_DB_PASSWORD" \
  --from-literal=port="5432" \
  --from-literal=postgres-password="$EVENTS_DB_PASSWORD" \
  --from-literal=postgres-username=postgres \
  --from-literal=postgresql-password="$EVENTS_DB_PASSWORD" \
  --from-literal=postgresql-username=postgres \
  --from-literal=username=wekahome

kubectl create secret generic --namespace "$NAMESPACE" wekahome-support-db-credentials \
  --from-literal=database=weka_home \
  --from-literal=hostname=${ARGO_APP_NAME}-supportdb \
  --from-literal=password="$SUPPORT_DB_PASSWORD" \
  --from-literal=port="5432" \
  --from-literal=postgres-password="$SUPPORT_DB_PASSWORD" \
  --from-literal=postgres-username=postgres \
  --from-literal=postgresql-password="$SUPPORT_DB_PASSWORD" \
  --from-literal=postgresql-username=postgres \
  --from-literal=username=wekahome

kubectl create secret generic --namespace "$NAMESPACE" "${ARGO_APP_NAME}-wekahome-jwt-key" \
  --from-literal=jwtKey="$JWT_KEY"

kubectl create secret generic --namespace "$NAMESPACE" "${ARGO_APP_NAME}-wekahome-admin-credentials" \
  --from-literal=adminPassword="$WEKA_ADMIN_PASSWORD" \
  --from-literal=adminUsername=admin

kubectl create secret generic --namespace "$NAMESPACE" "${ARGO_APP_NAME}-wekahome-encryption-key" \
  --from-literal=encryptionKey="$ENCRYPTION_KEY"

kubectl create secret generic --namespace "$NAMESPACE" wekahome-grafana-credentials \
  --from-literal=password="$GRAFANA_PASSWORD" \
  --from-literal=url="http://wekahome-grafana.$NAMESPACE.svc.cluster.local:3000/api/" \
  --from-literal=user=admin

Deploy the application Deploy the LWH Helm chart using your standard ArgoCD application definition. Ensure it references the values.yaml file you configured and uses the pre-created secrets.

Argo end-to-end example

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: weka-home-e2e-app   # Name of the Argo CD application
  namespace: argocd         # Namespace where Argo CD is installed
spec:
  project: default          # Argo CD project (use 'default' if not using custom projects)
  source:
    repoURL: [email protected]:weka/k8s-contrib.git   # Repository URL
    targetRevision: main                           # Branch to track (main branch)
    path: e2e-setups/weka-home-k8s/argo-e2e/argo-chart   # Path to the chart within the repo
  destination:
    server: https://kubernetes.default.svc   # Deploy to the same cluster
    namespace: weka-home                       # Target namespace for the application
  syncPolicy:
    automated:
      prune: true       # Automatically delete resources that are no longer in the Git repository
      selfHeal: true    # Automatically sync if drift is detected

Configure networking and access

Review the recommended methods for configuring network access to the LWH.

While WEKA Home supports various ingress controllers (such as ALB, Nginx, and Traefik), the simplest approaches are:

Use an Ingress Controller: Wrap the gateway service with your cluster's standard ingress configuration, such as a VirtualService if you use Istio.
Use a NodePort: Configure the service type as NodePort. This method is ideal for dedicated nodes that do not require an external load balancer.

Upgrade Local WEKA Home

Use this procedure to upgrade an existing LWH deployment to a new version using Helm.

Before you begin

Ensure you have the path to your customized values.yaml file.
Identify the new chart version you want to upgrade to.

Procedure

Update your local Helm repository to fetch the latest chart versions:
```
helm repo update
```
Run the helm upgrade command.
- This command uses --install to upgrade the existing wekahome release.
- Replace <new-version> with the specific chart version you are upgrading to.
- Ensure the --namespace and --values flags point to your existing deployment's configuration.
```
helm upgrade --create-namespace \
    --install wekahome wekahome/wekahome \
    --namespace weka-home \
    --version <new-version> \
    --values /path/to/values.yaml
```

PreviousLocal WEKA Home overview NextDeploy Local WEKA Home v3.x on K3s

Last updated 1 day ago
