Data lifecycle management
Explore the principles for data lifecycle management and how data storage is managed in SSD-only and tiered WEKA system configurations.
Media options for data storage in the WEKA system
In the WEKA system, data can be stored on two forms of media:
On locally-attached SSDs, which are an integral and required part of the WEKA system configuration.
On optional object-store systems external to the WEKA system. Object stores are provided either as cloud services or as part of an on-premises installation using a number of third-party solutions.
The WEKA system can be configured as an SSD-only or data management system consisting of SSDs and object stores. By nature, SSDs provide high performance and low latency storage, while object stores compromise performance and latency but are the most cost-effective solution available for storage.
Consequently, users focused on high performance only must consider using an SSD-only WEKA system configuration, while users seeking to balance performance and cost must consider a tiered data management system, with the assurance that the WEKA system features control the allocation of hot data on SSDs and warm data on object stores, thereby optimizing the overall user experience and budget.
In SSD-only configurations, the WEKA system sometimes uses an external object store for backup. For more details, see Snap-To-Object.
Guidelines for data storage in tiered WEKA system configurations
In tiered WEKA system configurations, there are various locations for data storage as follows:
Metadata is stored only on SSDs.
Writing new files, adding data to existing files, or modifying the content of files is performed on the SSDs, irrespective of whether the file is stored on the SSD or tiered to an object store.
When reading the content of a file, data can be accessed from either the SSD (if it is available on the SSD) or promoted from the object store (if it is not available on the SSD).
This data management approach to data storage on one of two possible media requires system planning to ensure that the most commonly used data (hot data) resides on the SSD to ensure high performance. In contrast, less-used data (warm data) is stored on the object store.
In the WEKA system, this determination of the data storage media is an entirely seamless, automatic, and transparent process, with users and applications unaware of the transfer of data from SSDs to object stores or from object stores to SSDs.
The data is always accessible through the same strongly-consistent POSIX filesystem API, irrespective of where it is stored. The actual storage media affects only latency, throughput, and IOPS.
Furthermore, the WEKA system tiers data into chunks rather than complete files. This enables the intelligent tiering of subsets of a file (and not only complete files) between SSDs and object stores.
The network resources allocated to the object store connections can be controlled. This enables cost control when using cloud-based object storage services since the cost of data stored in the cloud depends on the quantity stored and the number of requests for access made.
States in the WEKA system data management storage process
Data management represents the media being used for the storage of data. In tiered WEKA system configurations, data can exist in one of three possible states:
SSD-only: When data is created, it exists only on the SSDs.
SSD-cached: A tiered copy of the data exists on both the SSD and the object store.
Object store only: Data resides only on the object store.
These states represent the lifecycle of data and not the lifecycle of a file. When a file is modified, each modification creates a separate data lifecycle for the modified data.

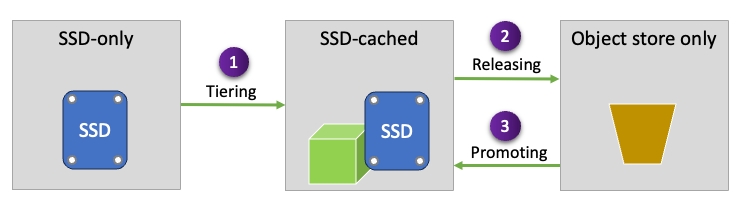

The data lifecycle flow diagram delineates the progression of data through various stages:
Tiering: This process involves data migration from the SSD to the object store, creating a duplicate copy. The criteria for this transition are governed by a user-specified, temporal policy known as the Tiering Cue.
Releasing: This stage entails removing data from the SSD and retaining only the copy in the object store. The need for additional SSD storage space typically triggers this action. The guidelines for this data release are dictated by a user-defined time-based policy referred to as the Retention Period.
Promoting: This final stage involves transferring data from the object store to the SSD to facilitate data access.
When accessing data which is solely on the object store, the data must first be promoted back to the SSD.
Within the WEKA system, file modifications are not executed as in-place writes. Instead, they are written to a new area on the SSD, and the corresponding metadata is updated accordingly. As a result, write operations are never linked with operations on the object store. This approach ensures data integrity and efficient use of storage resources.
The role of SSDs in tiered configurations
All writing in the WEKA system is performed on SSDs. The data residing on SSDs is hot (meaning it is currently in use). In tiered WEKA configurations, SSDs have three primary roles in accelerating performance: metadata processing, a staging area for writing, and a cache for reading performance.
Metadata processing
Since filesystem metadata is, by nature, a large number of update operations, each with a small number of bytes, the embedding of metadata on SSDs accelerates file operations in the WEKA system.
SSD as a staging area
Direct writing to an object store involves high latency. To mitigate this, the WEKA system avoids direct writes to object stores. Instead, all data is initially written to SSDs, which offer low latency and high performance. In this setup, SSDs act as a staging area, temporarily holding data until it is later tiered to the object store. Once the writing process is complete, the WEKA system manages the tiering of data to the object store and subsequently frees up space on the SSD.
SSD as a cache
Recently accessed or modified data is stored on SSDs, and most read operations are of such data and served from SSDs. This is based on a single, significant LRU clearing policy for the cache that ensures optimal read performance.
In a tiered filesystem, the total capacity refers to the maximum amount of data that can be stored. However, the way data is managed across different storage tiers (such as SSDs and object storage) can affect how this capacity is used.
For example, consider a filesystem with a total capacity of 100 TB, where 10 TB is allocated to SSD storage. In this scenario, it’s possible that all data resides in the object store, especially if SSD space is prioritized for metadata and caching. This situation could arise due to policies that manage data placement over time or based on SSD usage patterns. As a result, even though the SSD space isn't fully used for data storage, it remains reserved for essential functions like metadata management and caching. New data writes may be restricted until either some files are deleted or the filesystem’s total capacity is increased.
Time-based policies for the control of data storage location
The WEKA system includes user-defined policies that serve as guidelines to control data storage management. They are derived from several factors:
The rate at which data is written to the system and the quantity of data.
The capacity of the SSDs configured to the WEKA system.
The network speed between the WEKA system and the object store and its performance capabilities, e.g., how much the object store can contain.
Filesystem groups are used to define these policies, while a filesystem is placed in a filesystem group according to the desired policy if the filesystem is tiered.
For tiered filesystems, define the following parameters per filesystem:
The size of the filesystem.
The amount of filesystem data to be stored on the SSD.
Define the following parameters per filesystem group:
The Drive Retention Period Policy is a time-based policy which is the target time for data to be stored on an SSD after creation, modification, or access, and before release from the SSD, even if it is already tiered to the object store, for metadata processing and SSD caching purposes (this is only a target; the actual release schedule depends on the amount of available space).
The Tiering Cue Policy is a time-based policy that determines the minimum time that data remains on an SSD before it is considered for release to the object store. As a rule of thumb, this must be configured to a third of the Retention Period, and in most cases, this works well. The Tiering Cue is important because it is pointless to tier a file about to be modified or deleted from the object store.
Example
When writing log files that are processed every month but retained forever, it is recommended to define a Retention Period of one month, a Tiering Cue of one day, and ensure sufficient SSD capacity to hold one month of log files.
When storing genomic data, which is frequently accessed during the first three months after creation, requires a scratch space for six hours of processing, and requires output to be retained forever, it is recommended to define a Retention Period of three months and to allocate an SSD capacity that is sufficient for three months of output data and the scratch space. The Tiering Cue must be defined as one day to avoid a situation where the scratch space data is tiered to an object store and released from the SSD immediately afterward.
Using the Snap-To-Object feature causes data to be tiered regardless of the tiering policies.
Bypassing the time-based policies
Even when time-based policies are in place, you can override them using a unique mount option called obs_direct. When this option is used, any files created or written from the associated mount point are prioritized for release immediately without first considering other file retention policies.
For a more in-depth explanation, refer to Advanced Data Lifecycle Management.
