NFS

This page describes how the Weka system enables file access through the NFS protocol, instead of the Weka client. The Weka system supports NFSv3.

Overview

The NFS protocol allows client hosts to access the Weka filesystem without installing Weka’s client software using the standard NFS implementation of the client host operating system. While this implementation is easier to deploy, it does not compare in performance to the Weka client.

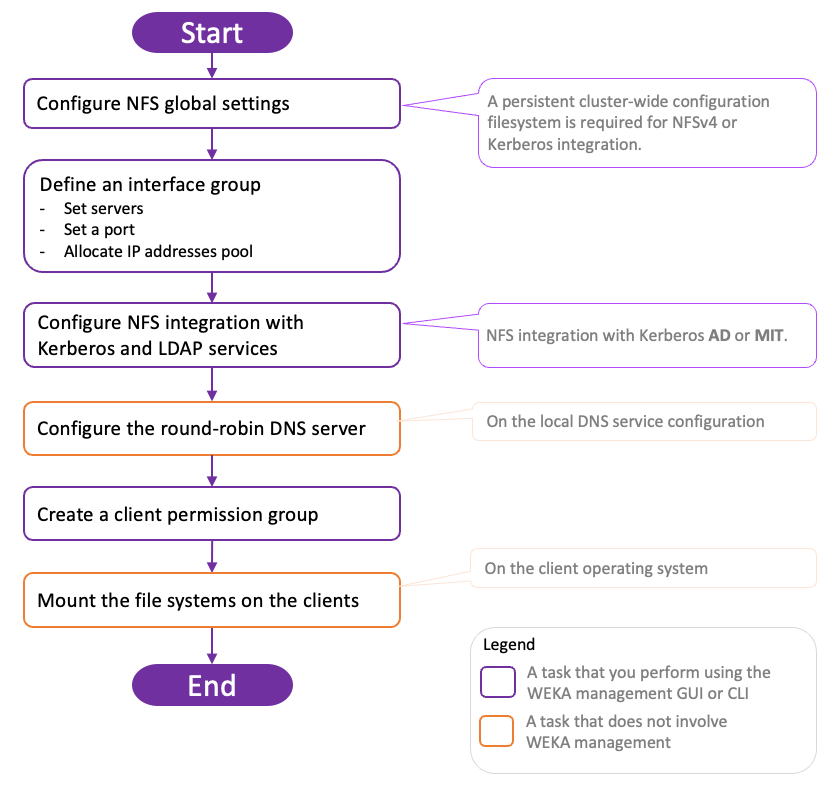

In order to implement NFS service from a Weka cluster, the following steps must be implemented:

Step

Method of Implementation

Define a set of hosts that will provide the NFS service, which can be the whole cluster or a subset of the cluster.

By defining an interface group.

Define Ethernet ports on each of the defined hosts that will be used to provide the NFS service.

By defining an interface group.

Allocate a pool of IP addresses that will be used by the Weka software to provide the NFS service.

By defining an interface group.

Define a Round-robin DNS name that will resolve to the floating IPs.

On the local DNS service configuration; does not involve Weka management.

Define the list of client hosts that will be permitted to access file systems via NFS.

By creating a client permission group.

Configure which client hosts can access which file system.

By creating a client permission group.

Mount the file systems on the client hosts using the NFS mount operating system support.

On the client operating system; does not involve Weka management.

Defining the NFS Networking Configuration (Interface Groups)

Note: Since only a single port can be added to an interface group, for HA support in NFS, two interface groups must be created, with each of the host ports assigned to a different interface group. Additionally, the network topology (switches) must be considered when assigning the other host ports to these interface groups, to ensure that a single point of failure is not created in the switch.

Implementing NFS Service from a Weka Cluster

In order to define the NFS service, one or more interface groups must be defined. An interface group consists of the following:

  • A collection of Weka hosts with an Ethernet port for each host, where all the ports must belong to the same layer 2 subnets.

  • A collection of floating IPs that serve the NFS protocol on the hosts and ports. All IP addresses must belong to the layer 2 subnet above.

  • A routing configuration for the IPs which must comply with the IP network configuration.

Up to 10 different Interface groups can be defined, where multiple interface groups can be used if the cluster needs to connect to multiple layer 2 subnets. Up to 50 hosts can be defined in each interface group.

The Weka system will automatically distribute the IP addresses evenly on each host and port. On failure of the host, the Weka system will reasonably redistribute the IP addresses associated with the failed host on other hosts. To minimize the effect of any host failures, it is recommended to define sufficient floating IPs so that the Weka system can assign 4 floating IPs per host.

Note: The Weka system will configure the host IP networking for the NFS service on the host operating system. It should not be defined by the user.

Configuring the Round-Robin DNS Server

To ensure that the various NFS clients will balance the load on the various Weka hosts serving NFS, it is recommended to define a Round-robin DNS entry which will resolve to the list of floating IPs, ensuring that client loads will be equally distributed across all hosts.

Note: Make sure to set the TTL (Time to Live) for all A records assigned to the NFS servers to 0 (Zero), this ensures that the IP won't be cached by the client or the DNS server.

Defining NFS Access Control (Client Access Groups)

In order to control which host can access which file system, NFS client permission groups must be defined. Each NFS client permission group contains:

  • A list of filters for IP addresses or DNS names of clients that can be connected to the Weka system via NFS.

  • A collection of rules that control access to specific filesystems.

Configuring NFS on the Client

The NFS mount should be configured on the client host via the standard NFS stack operating system. The NFS server IP address should point to the Round-robin DNS name defined above.

Load Balancing and Resiliency of the NFS Service

The Weka NFS service is a scalable, fully load-balanced, and resilient service that provides continuous service through failures of any kind.

Scalability is implemented by defining many hosts that serve the NFS protocol, thereby enabling the scaling of performance by adding more hosts to the interface group.

Load balancing is implemented via floating IPs. By default, the floating IPs are evenly distributed over all the interface group hosts/ports. When different clients resolve the DNS name into an IP service, each of them receives a different IP address, thereby ensuring that different clients will access different hosts. This allows the Weka system to scale and service thousands of clients.

The same mechanism ensures the resiliency of the service. On a host failure, all IP addresses associated with the failed host will be reassigned to other hosts (using the GARP network messages) and the clients will reconnect to the new hosts without any reconfiguration or service interruption.

User Groups Resolution

The NFS protocol, using AUTH_SYS protocol, has a limitation of 16 security groups users can be part of. The protocol truncates the group list to 16 if a user is part of more than 16 groups, and a permissions check can fail for authorized users.

As in many cases, a user can be part of more than 16 security groups. It is possible to configure the Weka system to ignore the groups passed by the NFS protocol and resolve the user's groups external to the protocol. For that, several steps should be taken:

  1. Define an interface group that supports external group-IDs resolution (allow-manage-gids option).

  2. Define the NFS client permissions to use external group-IDs resolution (manage-gids option).

  3. Set-up the relevant hosts to retrieve user's group-IDs information.

Setting up the Hosts to Retrieve User's Group-IDs Information

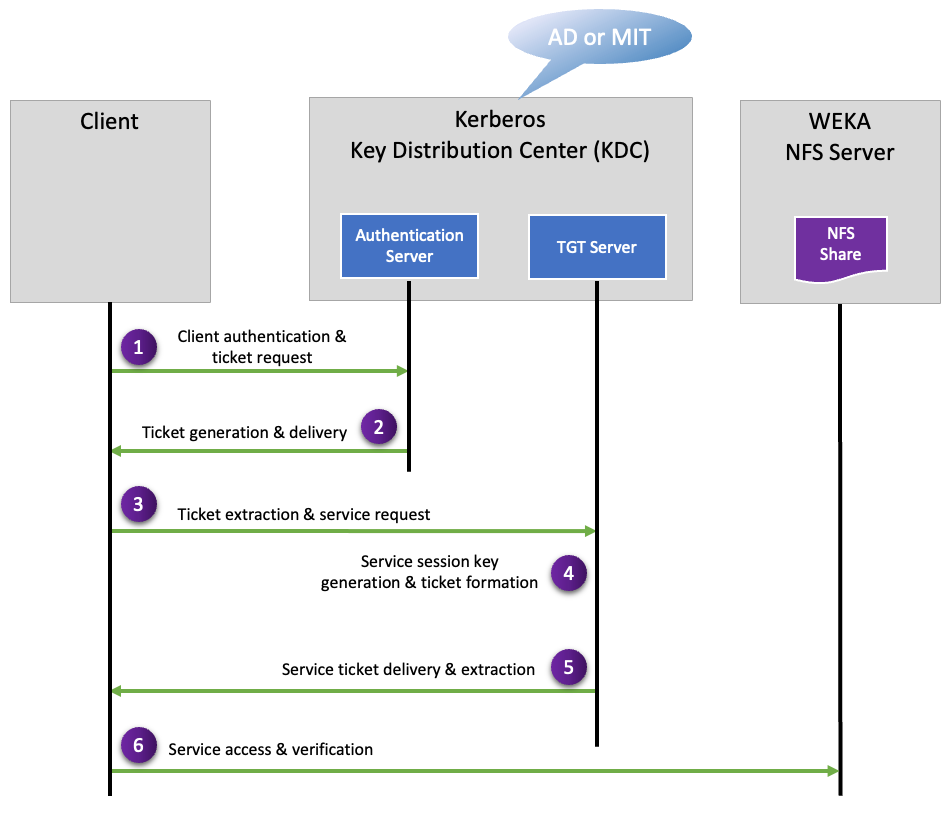

The hosts, which are part of the interface group, can be set to retrieve the user's group-IDs information in any method that is used in the environment. Group resolution can be set by joining to an AD domain, joining a Kerberos domain, using LDAP with a read-only user, etc.

sssd should be configured on the host to serve as a group IDs provider. It can be configured directly, using LDAP, for example, or as a proxy to a different nss group IDs provider.

Below is an example of how to set sssd directly for nss services using LDAP with a read-only user. For more options and information, refer to this link.

[sssd]
services = nss
config_file_version = 2
domains = LDAP
[domain/LDAP]
id_provider = ldap
ldap_uri = ldap://ldap.example.com
ldap_search_base = dc=example,dc=com
# The DN used to search the ldap directory with.
ldap_default_bind_dn = cn=ro_admin,ou=groups,dc=example,dc=com
# The password of the bind DN.
ldap_default_authtok = password

If the method used is not via sssd, but a different provider, an sssd proxy should be configured on each relevant host. The proxy is used for the Weka container to be able to resolve the groups by whatever method defined on the host. Use the following to configure sssd proxy on a host:

# install sssd
yum install sssd
# set up a proxy for weka in /etc/sssd/sssd.conf
[sssd]
services = nss
config_file_version = 2
domains = proxy_for_weka
[nss]
[domain/proxy_for_weka]
id_provider = proxy
auth_provider = none
# the name of the nss lib to be proxied, e.g. ldap, nis, winbind, vas4, etc.
proxy_lib_name = ldap

Note: All users must be present and resolved in the method used in sssd for groups resolution. For example, in the above example, using LDAP only provider, local users (e.g., a local root) that are not present in LDAP will not get their groups resolved and will be denied. An LDAP user will need to be added for such users/applications.

Managing NFS Networking Configuration (Interface Groups)

Defining Interface Groups

Defining Interface Groups Using the GUI

Access the NFS IP Interfaces screen.

NFS IP Interfaces Screen

To define an interface group, click the '+' button at the top left-hand side of the screen. The add Interface Groups dialog box will be displayed.

Add Interface Group Dialog Box

Enter the Group Name (this has to be unique) and the Gateway / Mask Bits. Then click Save.

Defining Interface Groups Using the CLI

Command: weka nfs interface-group add

Use the following command line to add an interface group:

weka nfs interface-group add <name> <type> [--subnet subnet] [--gateway gateway] [--allow-manage-gids allow-manage-gids]

Parameters in Command Line

Name

Type

Value

Limitations

Mandatory

Default

name

String

Unique interface group name

Up to 11 characters length

Yes

type

String

Group type

Can only be NFS

Yes

subnet

String

The subnet mask in the 255.255.0.0 format

Valid netmask

No

255.255.255.255

gateway

String

Gateway IP

Valid IP

No

255.255.255.255

allow-manage-gids

String

Allows the hosts within this interface group to use manage-gids when set in exports.

With manage-gids, the list of group IDs received from the client will be replaced by a list of group IDs determined by an appropriate lookup on the server.

on or off.

Cannot be set if one of the hosts belongs to an interface group which does not have the allow-manage-gids flag set.

No

off

Note: Each host can be set to be part on interface groups with the same value of allow-manage-gids. In addition, you must not mount the same filesystem via hosts resides in interface groups with different values of allow-manage-gids.

Setting Interface Group Ports

Setting Interface Group Ports using the GUI

Access the Group Ports table.

Group Ports Table

To set interface group ports, click the '+' button on the top right-hand side of the Group Ports table. Then select the relevant hosts and ports and click Save.

To remove an interface group port, click the trash symbol displayed next to the host's status.

Setting Interface Group Ports using the CLI

Commands: weka nfs interface-group port addand weka nfs interface-group port delete

Use the following command lines to add/delete an interface group port:weka nfs interface-group port add <name> <host-id> <port> weka nfs interface-group port delete <name> <host-id> <port>

Parameters in Command Line

Name

Type

Value

Limitations

Mandatory

Default

name

String

Interface group name

None

Yes

host-id

String

Host ID on which the port resides (can be obtained by running the weka cluster host command)

Valid host ID

Yes

port

String

Port's device, e.g., eth1

Valid device

Yes

Setting Interface Group IPs

Setting Interface Group IPs using the GUI

Access the Group IPs table.

Group IPs Table

To set IPs for the selected group, click the '+' button on the top right-hand side of the Group IPs table. Then enter the relevant IP range and click Save.

To remove an IP, click the trash symbol displayed next to the IP in the table.

Setting Interface Group IPs using the CLI

Commands: weka nfs interface-group ip-range addand weka nfs interface-group ip-range delete

Use the following command lines to add/delete an interface group IP: weka nfs interface-group ip-range add <name> <ips> weka nfs interface-group ip-range delete <name> <ips>

Parameters in Command Line

Name

Type

Value

Limitations

Mandatory

Default

name

String

Interface group name

None

Yes

ips

String

IP range

Valid IP range

Yes

Managing NFS Access Control (Client Access Groups)

Defining Client Access Groups

Defining Client Access Groups Using the GUI

Access the NFS Client Permissions screen.

NFS Client Permissions Screen

To define a client access group, click the '+' button on the top left-hand side of the screen. Enter the client access-group name and click Save.

Defining Client Access Groups Using the CLI

Command: weka nfs client-group

Use the following command lines to add/delete a client access group: weka nfs client-group add <name> weka nfs client-group delete <name>

Parameters in Command Line

Name

Type

Value

Limitations

Mandatory

Default

name

String

Group name

Valid name

Yes

Managing Client Access Groups

Managing Client Access Groups Using the GUI

To add IPs or DNS rules to a group, access the relevant Client Groups dialog box.

Client Groups Dialog Box

Click +Add IP or +Add DNS. The appropriate dialog box will be displayed.

Add DNS to a Client Group Dialog Box
Add IP to a Client Group

Enter the required values - DNS or IP and Mask, respectively, and click Save.

To remove an IP or DNS from a client group, click the trash symbol displayed next to IP or DNS.

Managing Client Access Groups Using the CLI

Adding/Deleting DNS

Command: weka nfs rules

Use the following command lines to add/delete a client group DNS: weka nfs rules add dns <name> <dns> weka nfs rules delete dns <name> <dns>

Parameters in Command Line

Name

Type

Value

Limitations

Mandatory

Default

name

String

Group name

Valid name

Yes

dns

String

DNS rule with *?[] wildcard rules

Yes

Adding/Deleting an IP

Command: weka nfs rules

Use the following command lines to add/delete a client group IP: weka nfs rules add ip <name> <ip> weka nfs rules delete ip <name> <ip>

Parameters in Command Line

Name

Type

Value

Limitations

Mandatory

Default

name

String

Group name

Valid name

Yes

ip

String

IP with netmask rule, in the 1.1.1.1/255.255.0.0 format

Valid IP

Yes

Managing NFS Client Permissions

Managing NFS Client Permissions Using the GUI

To add client permissions, click the top right-hand '+' icon in the Client Permissions table. The Permissions dialog box will be displayed.

NFS Permissions Dialog Box

Define the following parameters:

  • Client Group: the client group to receive permissions.

  • Filesystem: the filesystem to receive permissions.

  • Path: The path that will be the root of the share.

  • Type: The type of access to be provided - RO (read-only) or RW (Read/Write).

  • Squash Root: Set to ON or OFF.

  • Anon. UID: Anonymous user ID (relevant only for root squashing).

  • Anon. GID: Anonymous user group ID (relevant only for root squashing)

Then click Save.

Managing NFS Client Permissions Using the CLI

Command: weka nfs permission

Use the following command lines to add/update/delete NFS permissions: weka nfs permission add <filesystem> <group> [--path path] [--permission-type permission-type] [--root-squashing root-squashing] [--anon-uid anon-uid] [--anon-gid anon-gid] [--obs-direct obs-direct] [--manage-gids manage-gids] [--privileged-port privileged-port]

weka nfs permission update <filesystem> <group> [--path path] [--permission-type permission-type] [--root-squashing root-squashing] [--anon-uid anon-uid] [--anon-gid anon-gid] [--obs-direct obs-direct] [--manage-gids manage-gids] [--privileged-port privileged-port]

weka nfs permission delete <filesystem> <group> [--path path]

Parameters in Command Line

Name

Type

Value

Limitations

Mandatory

Default

filesystem

String

Filesystem name

Existing filesystem

Yes

group

String

Client group name

Existing client group

Yes

path

String

The root of the share

Valid path

No

/

permission-type

String

Permission type

ro for read-only or

rw for read-write

No

rw

root-squashing

String

Root squashing

on or off

No

on

anon-uid

Number

Anonymous user ID (relevant only for root squashing)

Valid UID (between 1 and 65535)

Yes (if root squashing is enabled)

65534

anon-gid

Number

Anonymous user group ID (relevant only for root squashing)

Valid GID (between 1 and 65535)

Yes (if root squashing is enabled)

65534

obs-direct

Boolean

See Object-store Direct Mount section

on or off

No

No

manage-gids

String

Sets external group IDs resolution.

The list of group IDs received from the client will be replaced by a list of group IDs determined by an appropriate lookup on the server.

on or off.

Relevant only when usingallow-manage-gids interface groups.

No

off

privileged-port

String

Sets the share to only be mounted via privileged ports (1-1024), usually only allowed by the root user.

on or off.

Relevant only when usingallow-manage-gids interface groups.

No

off

Supported Mount Options for NFS Clients

Non-Coherent Mount Options

  • ac

  • async

  • noatime

  • lookupcache=all

Coherent Mount Options

  • noac

  • sync

  • atime

  • lookupcache=none

Common Mount Options

Note: The following options can be changed. These values are commonly used with the Weka system:

  • rw

  • hard

  • rsize=524288

  • wsize=524288

  • namlen=255

  • timeo=600

  • retrans=2

Fixed Mount options

Note: Please make sure to set these values on the mount command, as different values are not supported.

  • nolock

Note: The following options should have fixed values, but usually are either the NFS mount defaults or will be negotiated to these values by the protocol.

  • sec=sys

  • vers=3

  • mountvers=3

  • proto=tcp

  • mountproto=tcp
