Supported virtual machine types
Supported VM sizes for backends
On Azure, WEKA is deployed in a multi-container architecture using the storage-optimized Lsv3-series and Lasv3-series Azure Virtual Machines (Azure VMs). These VMs feature high throughput, low latency, and directly mapped local NVMe storage.
Each VM size has a specific number of NICs, but only one is used for all traffic in UDP mode through the management interface.
The following table lists the VM sizes applied by the Terraform package on the backends:
| VM size | vCPU | Memory (GiB) | NVMe disks | Max NICs | BW (Mbps) |
|---|---|---|---|---|---|
Standard_L8s_v3 | 8 | 64 | 1x1.92 TB | 4 | 12500 |
Standard_L16s_v3 | 16 | 128 | 2x1.92 TB | 8 | 12500 |
Standard_L32s_v3 | 32 | 256 | 4x1.92 TB | 8 | 16000 |
Standard_L48s_v3 | 48 | 384 | 6x1.92 TB | 8 | 24000 |
Standard_L64s_v3 | 64 | 512 | 8x1.92 TB | 8 | 30000 |
Standard_L80s_v3 | 80 | 640 | 10x1.92 TB | 8 | 32000 |
Standard_L8as_v3 | 8 | 64 | 1x1.92 TB | 4 | 12500 |
Standard_L16as_v3 | 16 | 128 | 2x1.92 TB | 8 | 12500 |
Standard_L32as_v3 | 32 | 256 | 4x1.92 TB | 8 | 16000 |
Standard_L48as_v3 | 48 | 384 | 6x1.92 TB | 8 | 24000 |
Standard_L64as_v3 | 64 | 512 | 8x1.92 TB | 8 | 32000 |
Standard_L80as_v3 | 80 | 640 | 10x1.92 TB | 8 | 32000 |
Using the Azure Console, the client instances can have different virtual machine types provisioned separately from the WEKA cluster.
Related information
Lsv3-series and Lasv3-series (Azure learning site)
Mapped cores to processes

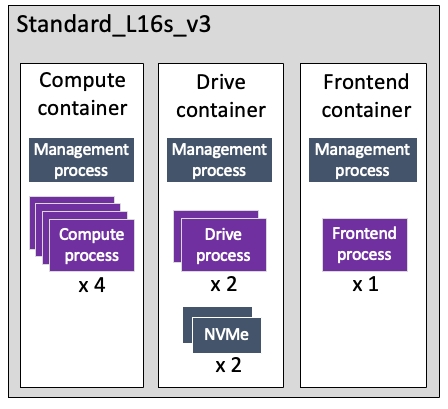

In each virtual machine size, the cores are mapped to a specific number of the compute, drive, and frontend processes. For example, in the Standard_L16s_v3 size, the cores are mapped to the following processes:
Compute: 4
Drive: 2
Frontend: 1
| VM size | # of compute cores | # of drive cores | # of frontend cores |
|---|---|---|---|
Standard_L8s_v3 | 1 | 1 | 1 |
Standard_L16s_v3 | 4 | 2 | 1 |
Standard_L32s_v3 | 4 | 2 | 1 |
Standard_L48s_v3 | 3 | 3 | 1 |
Standard_L64s_v3 | 4 | 2 | 1 |
Standard_L80s_v3 | 4 | 2 | 1 |
Standard_L8as_v3 | 1 | 1 | 1 |
Standard_L16as_v3 | 4 | 2 | 1 |
Standard_L32as_v3 | 4 | 2 | 1 |
Standard_L48as_v3 | 3 | 3 | 1 |
Standard_L64as_v3 | 4 | 2 | 1 |
Standard_L80as_v3 | 4 | 2 | 1 |
Supported VM sizes for clients
General purpose virtual machine sizes
| VM series | VM size |
|---|---|
Dsv3 | Standard_D4s_v3, Standard_D8s_v3, Standard_D16s_v3 |
Dasv4 | Standard_D2as_v4, Standard_D4as_v4, Standard_D8as_v4 |
Ddsv4 | Standard_D16ds_v4 |
Dasv4 | Standard_D4as_v4, Standard_D16as_v4, Standard_D32as_v4, Standard_D96as_v4 |
Dv5 | Standard_D8_v5 |
Dsv5 | Standard_D4s_v5 ,Standard_D16s_v5, Standard_D48s_v5 , Standard_D64s_v5 |
Dadsv5 | Standard_D4ads_v5, Standard_D16ads_v5, Standard_D48ads_v5, Standard_D96ads_v5 |
Dcsv2 | Standard_DC4s_v2 (UDP only) |
Dasv5 | Standard_D2as_v5, Standard_D8as_v5 |
Dpldsv5 | Standard_D8plds_v5, Standard_D32plds_v5, Standard_D64plds_v5 |
Dpsv5 | Standard_D4ps_v5, Standard_D8ps_v5, Standard_D16ps_v5, Standard_D32ps_v5, Standard_D48ps_v5, Standard_D64ps_v5 |
Memory optimized virtual machine sizes
| VM series | VM size |
|---|---|
Edsv4 | Standard_E16ds_v4, Standard_E16-8ds_v4, Standard_E32ds_v4, |
Easv4 | Standard_E32-16as_v4 |
Easv5 | Standard_E32-16as_v5 |
Edsv4 | Standard_E32-16ds_v4, Standard_E48ds_v4 |
Eadsv5 | Standard_E96ads_v5 |
Mdmsv2 | Standard_M64dms_v2 |
Msv2 | Standard_M208s_v2 |
Mmsv2 | Standard_M208ms_v2, Standard_M416ms_v2 |
Epsv5 | Standard_E4ps_v5, Standard_E8ps_v5, Standard_E16ps_v5, Standard_E20ps_v5, Standard_E32ps_v5 |
Compute optimized virtual machine sizes
| VM series | VM size |
|---|---|
FXmds | Standard_FX48mds |
Fsv2 | Standard_F8s_v2, Standard_F32s_v2, Standard_F64s_v2, Standard_F72s_v2 |
Storage optimized virtual machine sizes
| VM series | VM size |
|---|---|
Lsv3 | Standard_L8s_v3, Standard_L16s_v3, Standard_L32s_v3, Standard_L48s_v3, Standard_L64s_v3, Standard_L80s_v3 |
High performance optimized
| VM series | VM size |
|---|---|
HBv4 | Standard_HB176rs_v4, Standard_HB176-24rs_v4, Standard_HB176-96rs_v4 |
HBv3 | Standard_HB120rs_v3 |
GPU - accelerated compute
| VM series | VM size |
|---|---|
NGads V620 | Standard_NG8ads_V620_v1, Standard_NG16ads_V620_v1, Standard_NG32ads_V620_v1 |
NVadsA10 | Standard_NVadsA10_v5 |
