Manage the system using the WEKA GUI
WEKA GUI application enables you to configure, administer, and monitor the WEKA system. This page provides an overview of the primary operations, access to the GUI, and system dashboard.
The WEKA GUI application is the administration tool for your WEKA system. Use this tool for system configuration, filesystems management, user management, and investigation of alarms, events, and statistics.
WEKA GUI application supports the following functions:
- Configure the cluster, such as data availability, license, security, and central monitoring.
- Configure the backend containers and expose the data in different protocols.
- Manage local users and set up the user directory.
- Create and manage organizations and their quotas.
- Manage the filesystems, including tiering, thin provisioning, and encryption.
- Manage snapshots.
- Manage the object store buckets.
- Manage the filesystem protocols: SMB, S3, and NFS.
- Manage directory quotas.
- Investigate events.
- Investigate overtime statistics, such as total operations, R/W throughput, CPU usage, and read or write latency.
- View the cluster protection and availability.
- View the R/W throughput.
- View the backend and client top consumers.
- View alarms.
- View the used, provisioned, and total capacity.
- View the frontend, compute, and drive cores usage.
- View the hardware components (active/total).
WEKA GUI overview
WEKA GUI is a web application you can access using an already configured account and has the appropriate rights to configure, administer, or view.
You can access the WEKA GUI with any standard browser using the address:
https://<weka system or server name>:14000
On AWS installations, you can access the WEKA GUI from the self-service portal. In the Outputs tab of the CloudFormation stack, click the GUI link.
Before you begin
Make sure that port 14000 is open in the firewall of your organization.
- 1.In your browser, go to

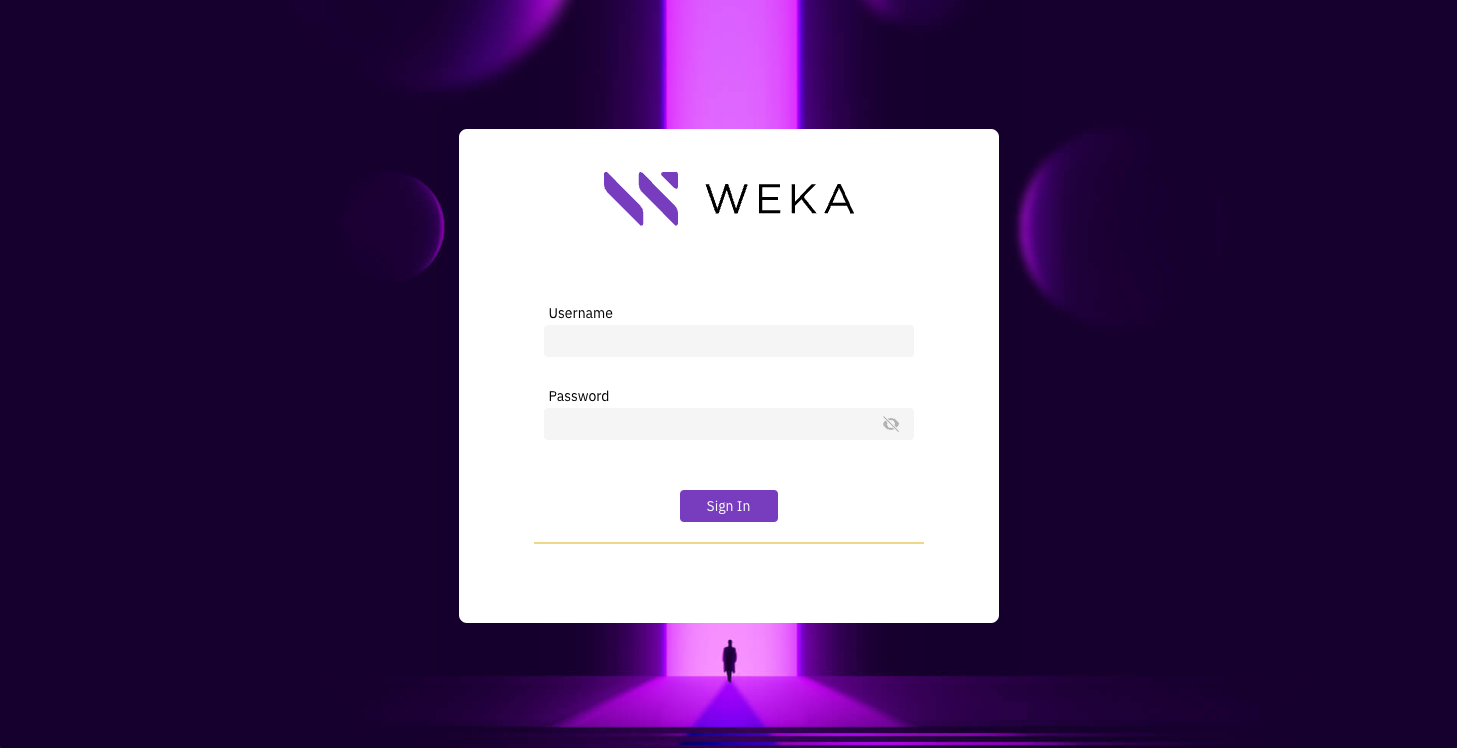

https://<weka system or server name>:14000. The sign-in page opens.
Sign in to the WEKA GUI
- 2.Sign in with the username and password of an account with cluster administration or organization administration privileges. For details about the account types, see User management in the related topics.
The system dashboard opens.

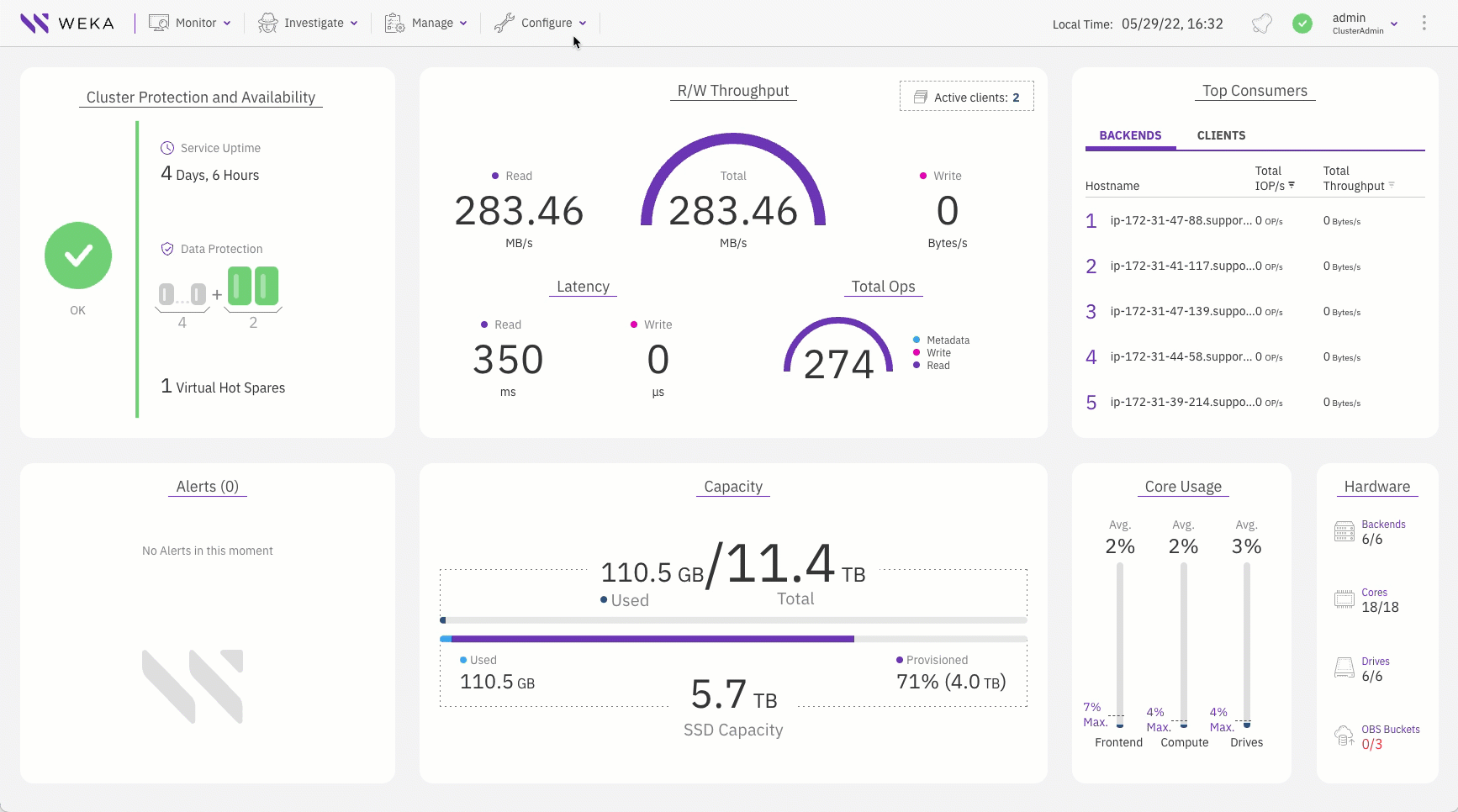

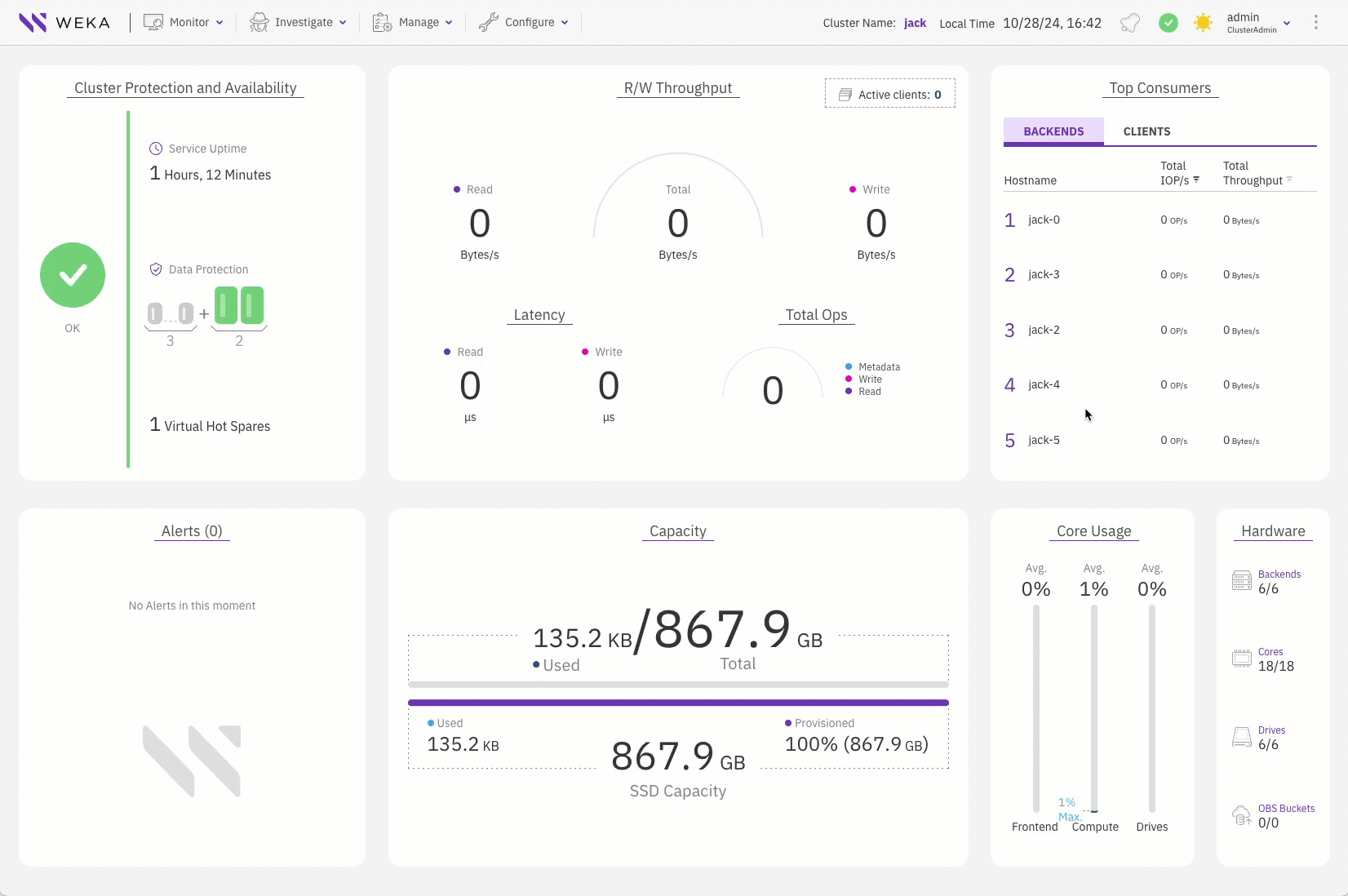

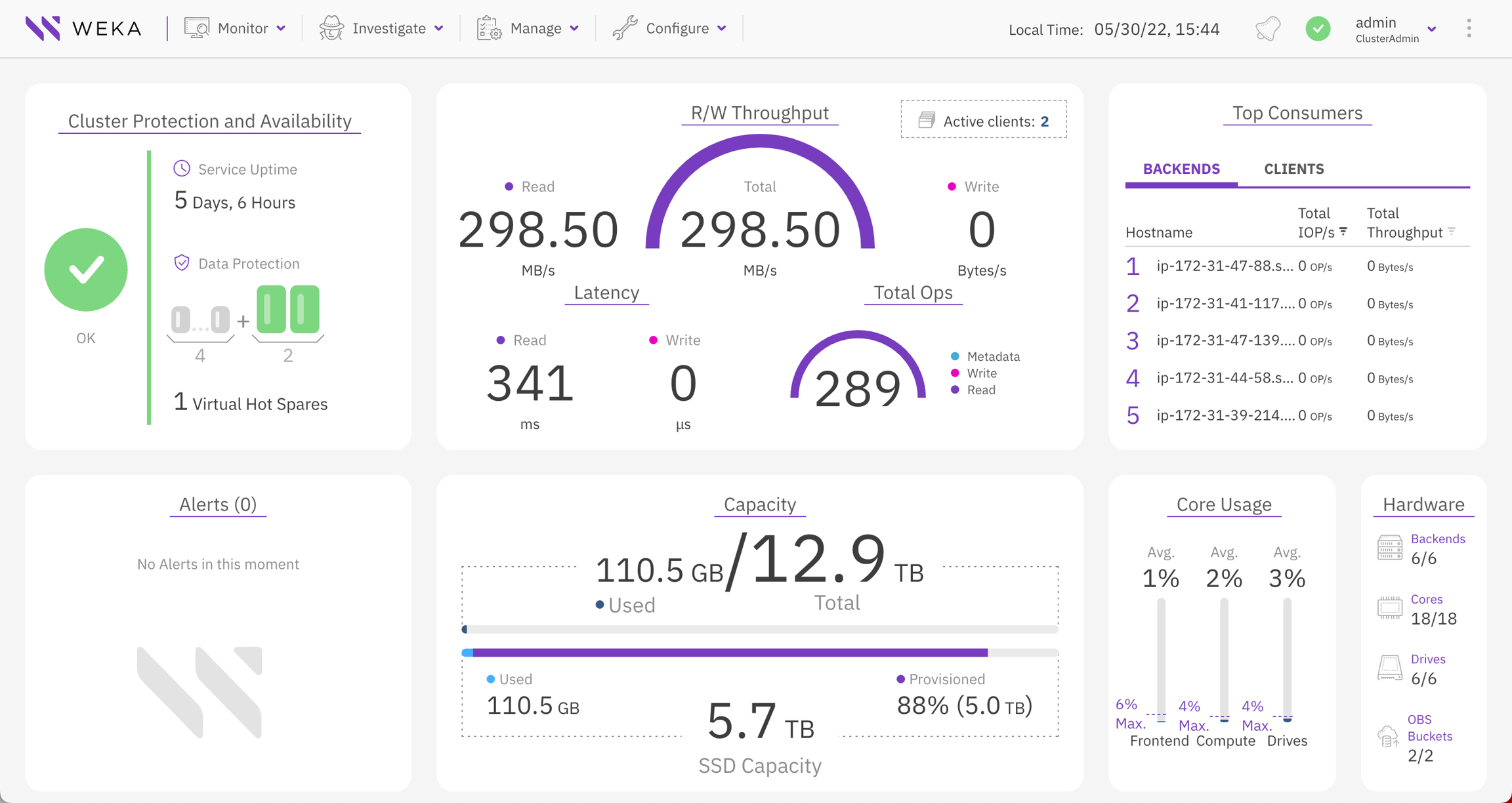

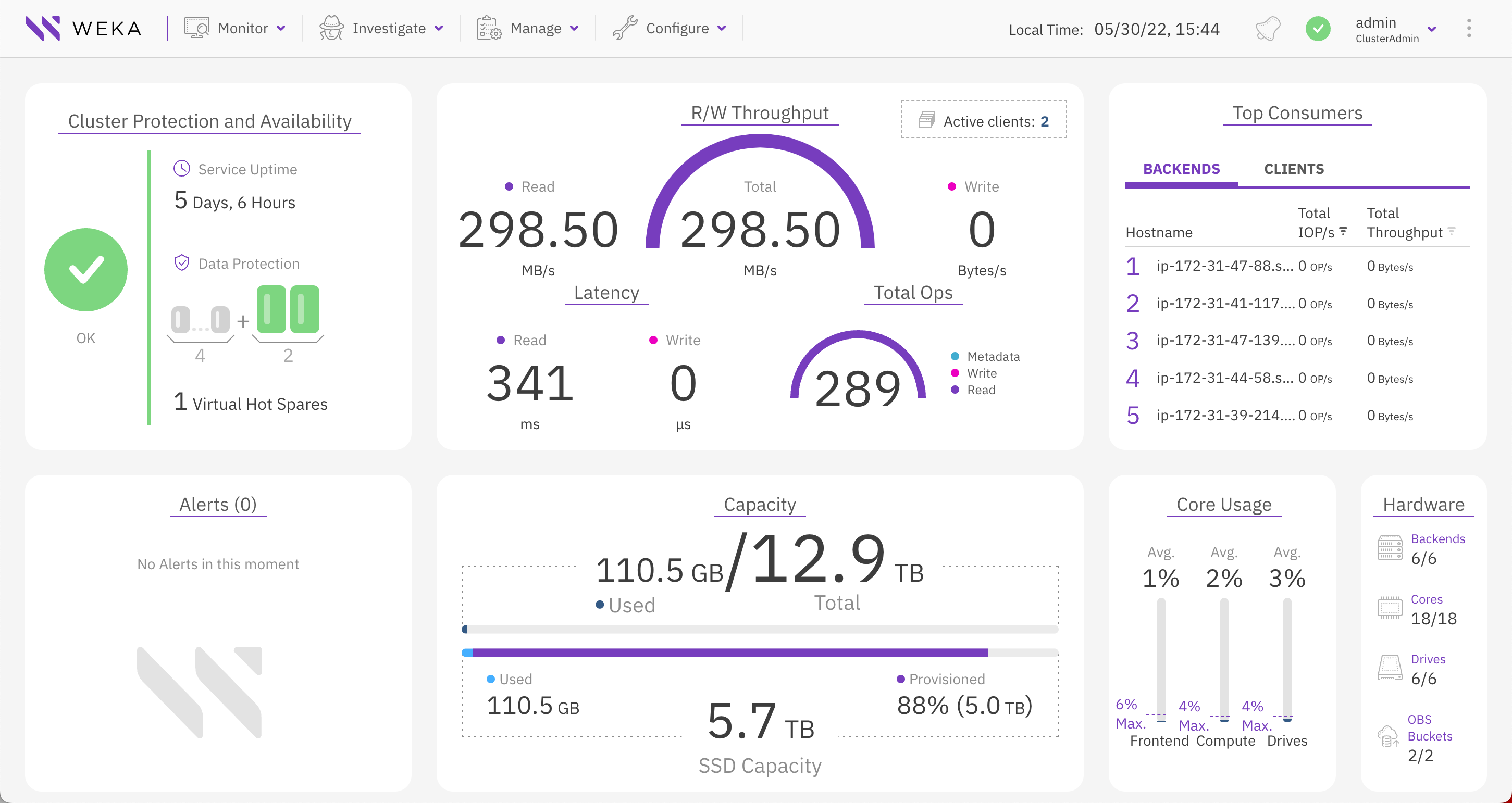

The system dashboard contains widgets that provide an overview of the WEKA system, including an overall status, R/W throughput, top consumers, alerts, capacity, core usage, and hardware.
The system dashboard opens by default when you sign in. If you select another menu and want to display the dashboard again, select Monitor > System Dashboard, or click the WEKA logo.
This widget shows the overall status of the system's health and protection state.
The overall status widget includes the following indications:
- Protection state: The possible protection states include:
- OK: The system operates properly.
- UNKNOWN: The protection state is unknown.
- UNINITIALIZED: The system still needs to complete the cluster configuration and run the first IOs.
- REBUILDING: When a failure occurs, the data rebuild process reads all the stripes where the failure occurred, rebuilds the data, and returns the system to full protection.
- PARTIALLY_PROTECTED: Some or all of the data is not fully protected. The reported number of protections indicates the cluster's failure resilience.
- UNPROTECTED: The data is not protected against any failure.
- UNAVAILABLE: Too many parallel failures occur in the system that can cause system unavailability.
- REDISTRIBUTING: The system redistributes the data between servers and drives due to scale-up or scale-down.
- Service Uptime: The elapsed time since the I/O services started.
- Data Protection: The number of data drives and protection parity drives. The color of the protection parity drives indicates their status.
- Virtual (Hot) Spares: The number of failure domains the system can lose and still complete the data rebuild while maintaining the same net capacity.

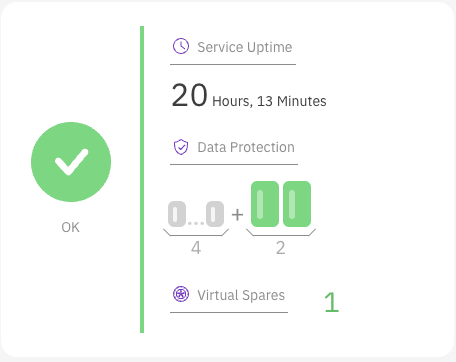

Overall status widget
This widget shows the current performance statistics aggregated across the cluster.
The R/W Throughput widget includes the following indications:
- Throughput: The total throughput.
- Total Ops: The number of cluster operations.
- Latency: The average latency of R/W operations.
- Active clients: The number of clients connected to the cluster.

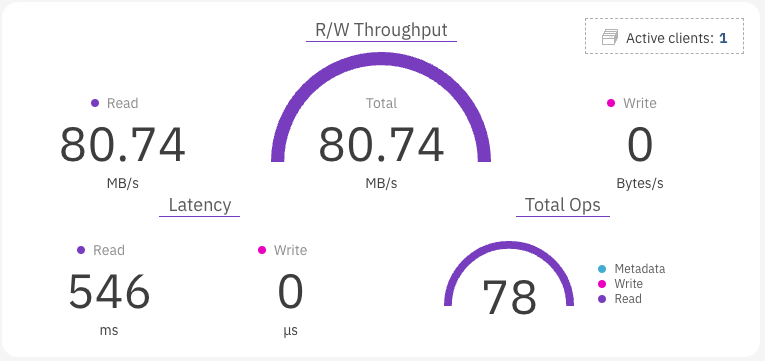

R/W Throughput widget
Selecting one of the R/W Throughput, Latency, and Total Ops titles displays the statistics page.
Selecting the Active clients title displays the clients tab.

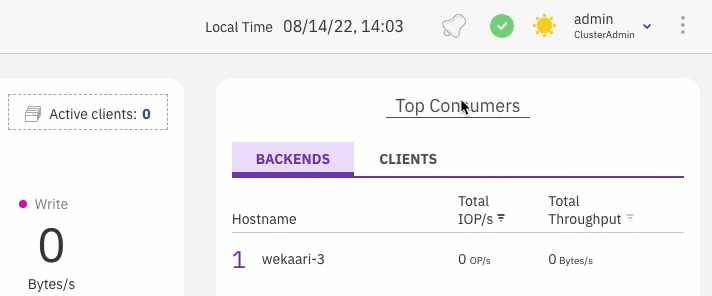

This widget shows the top 5 backend servers and clients in the system. You can sort the list of servers by total IO operations per second or total throughput.

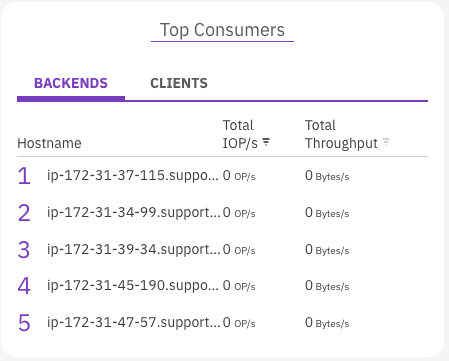

Top Consumers widget

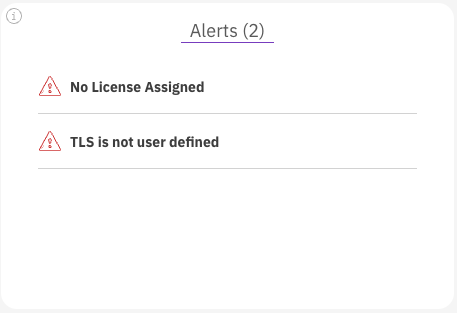

This widget shows the alerts that are not muted.

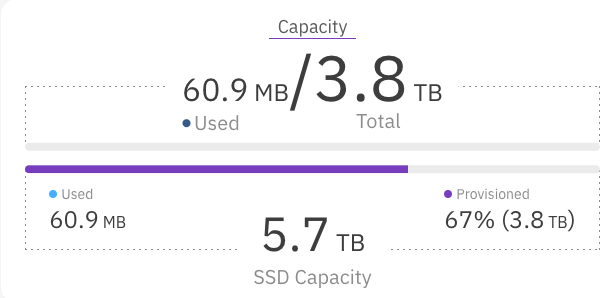

This widget shows an overview of the managed capacity.
The top bar indicates the total capacity provisioned for all filesystems and the used capacity. For tiered filesystems, the total capacity also includes the Object Store part.
The bottom bar indicates the total SSD capacity available in the system, the provisioned capacity, and the used capacity.
Selecting the Capacity title displays the filesystems page.
This widget shows the average usage and the maximum load level of the Frontend, Compute, and Drive cores. Hovering the maximum value displays the most active server and the NodeID number.
Core Usage widget

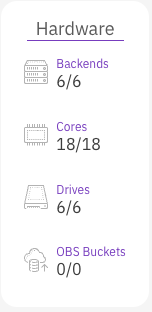

This widget shows an overview of the hardware components (active/total).
The hardware components include:
- Backends: The number of backend servers.
- Cores: The number of cores configured for running processes in the backend servers.
- Drives: The number of drives.
- OBS Buckets: The number of the object store buckets.
Selecting one of the Backends, Cores, or Drives titles displays the backend servers page.
Selecting the OBS Buckets title displays the object store buckets page.
Timestamps in events and statistics are logged internally in UTC. Weka GUI displays the timestamps in local or system time. You can switch between the local and system time.
Switching the display time may be required when the customer, Weka support, and the Weka system are in different time zones. In this situation, the customer and Weka support can switch the display to system time instead of local time so both view the identical timestamps.

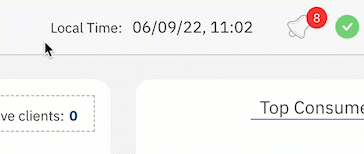

- 1.On the top bar, point to the timestamp.
- 2.Depending on the displayed time, select Switch to System Time or Switch to Local Time.
Switch display time
You can switch the GUI between light and dark modes according to your preferences. The dark mode is a user interface for content that displays light text on a dark background. The dark mode is beneficial for viewing screens at night. The reduced brightness can reduce eye strain in low-light conditions.
- 1.Depending on the current display mode, point to the sun or moon symbol on the top bar.
- 2.Select Switch to the light mode or Switch to dark mode.
Switch the GUI between light and dark modes
You can switch the view of the servers to 3D for the backend servers, NFS servers, S3 servers, and SMB servers.
The 3D view provides the server components' status at a glance, including the drives, cores, protocols, and load. The colors indicate, for example, if the drives or processes failed or the container is down.

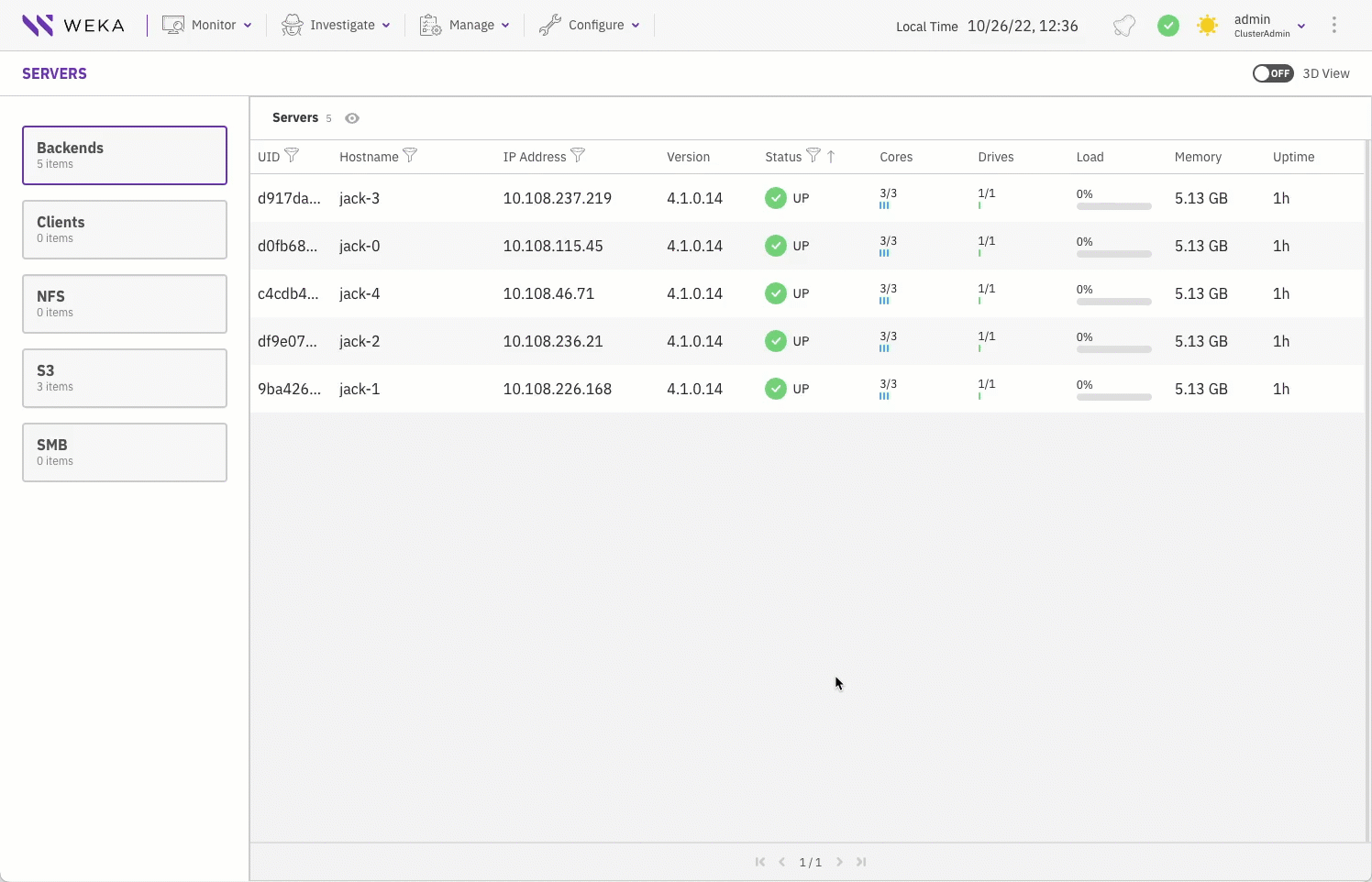

Display servers in 3D view
When managing filesystems, snapshots, and object stores, the displayed tables listing the rows have two behaviors in common.
- The table title also specifies the table's number of rows and the maximum number of rows the table can display.
- You can customize the columns displayed on the table using the column selector.

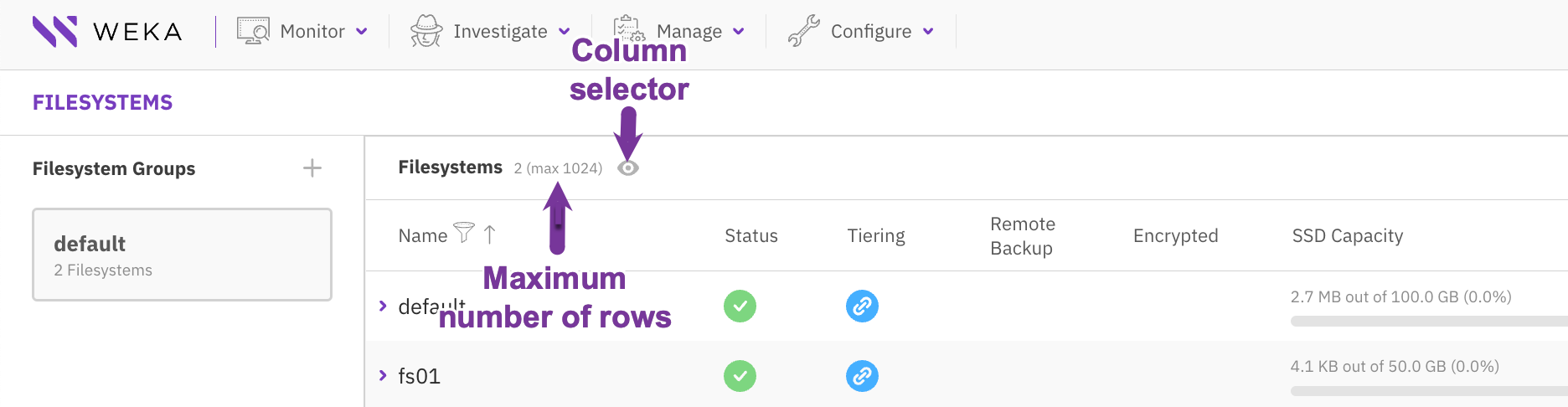

Example: Display the filesystems table
