Snapshot management
This page describes how to set up automatic snapshot mangement
Weka's SnapTool allows for the creation of scheduled snapshots for your cluster automatically and optionally uploads them to a tiered object store.

Features

  • Schedule snapshots monthly, daily, or at multiple (minute granularity) intervals during a daily schedule.
  • Retention specification - each schedule controls the number of snapshot copies to retain.
  • Expired snapshots are automatically deleted.
  • Optionally upload snapshots to an Object Store automatically.
  • Background uploads and deletes
Note: Configuration files from releases before 1.0.0 are not compatible with 1.0.0 and above. They will need to be modified to use the new syntax.

Where to run?

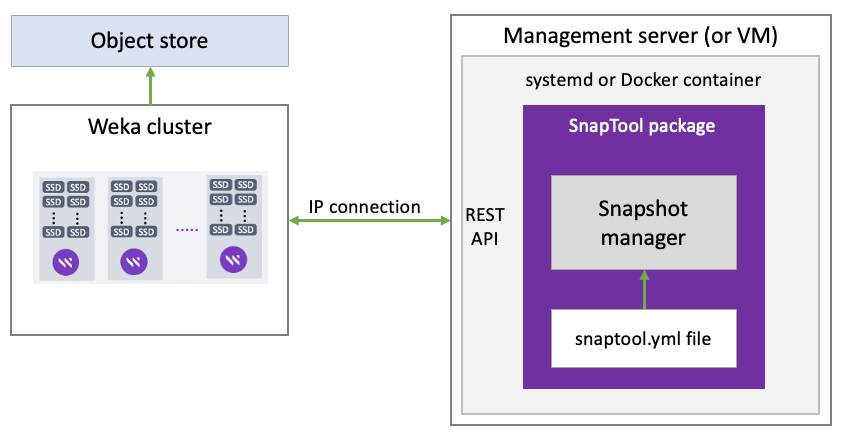

snaptool can be run on any Linux system or VM and does not need to be on a host running the Weka protocol. All communication with the Weka Cluster is via the Weka API and needs only IP connectivity to a Weka host. If snaptool is not running on a host with Weka installed, a valid auth-token.json file for the weka cluster will need to be copied to the running host, typically into ~/.weka.

Installation

snaptool is typically installed as a systemd service or in a Docker container; however, you will need to customize the configuration (snaptool.yml) file prior to starting the snaptool. See Deploying the Snapshot Management Tool with Systemd or Deploying the Snapshot Management Tool in Docker sections for details on each installation type.

Configuration

A YAML file provides configuration information. The default configuration file name is snaptool.yml, and a sample snaptool.yml is included. There are three top-level sections, all of which are required:
1
cluster:
2
filesystems:
3
schedules:
Copied!

Cluster syntax

Cluster information is in the cluster: section. A host list is required. Other entries in this section are optional but are recommended for clarity. See the example snaptool.yml below for valid syntax.
Note: It is not necessary to list all weka hosts/servers in the cluster, but more than one is recommended.
The allowed entries are:
1
cluster:
2
auth_token_file:
3
hosts:
4
force_https:
5
verify_cert:
Copied!

Filesystems syntax

Filesystems are in the filesystems: section, and these entries define which snapshot schedule(s) will run for the listed filesystems. Each filesystem line looks like this:
1
<fsname>: <schedule1>,<schedule2>...
Copied!

Schedule syntax

Schedules Syntax is below. Schedules that are within a scheduled group cannot be assigned separately from the group, and the group name must be used.
Using the example configuration file (YAML file), define your filesystems and which schedule(s) they should use. Also, define custom schedules in the YAML file. Schedule keywords and syntax are shown below.
To indicate that a particular schedule (i.e.,: monthly, weekly) should not run on a filesystem, set the retain: to 0, or remove it from the filesystem's schedule list.
snaptool checks to see if the YAML configuration file has changed approximately every 30-60 seconds and reloads it if it has. Snapshot schedules are then recalculated before creating new snapshots.
Each schedule has the following syntax:
1
<optional schedulegroupname>:
2
3
<schedulename>:
4
5
every: (required) 'month' | 'day' | list of months | list of days
6
'day' or list of days
7
- takes a snap at time specified by at: on the specified day(s)
8
- 'day' is equivalent to specifying all 7 days of the week
9
- list of days can be 3 character day abbreviation, or full day names. For example:
10
Mon,Tue
11
Monday,Tuesday,Wednesday,Thursday,Friday
12
- see also 'interval:' <number of minutes> and 'until:'
13
'month' or list of months
14
- takes a snap on <day:> (integer 1..31) of the month, at time specified by <at:>
15
- 'month' is equivalent to specifying all 12 months
16
- day: defaults to 1, first day of the month
17
- if day > last day of a month (example: day is 31 and the month is April),
18
then the snap is taken on the last day of the month
19
- list of months can be 3 character mon abbreviations, or full month names. For eample:
20
"Jan,Jul"
21
"January,April,Aug,Oct"
22
23
at: time - defaults to '0000' (midnight)
24
- format accepts times like "9am", "9:15am" "2300" etc. Some valid examples:
25
at: 9am
26
at: 0900
27
at: 9:05pm
28
29
interval: <number of minutes>
30
- number of minutes between snapshots
31
- only applicable for schedules by day, not month ('day' or list of days)
32
- if 'interval:' is not provided, a single snapshot per day is taken at "at:"
33
- if 'interval:' is provided - 'at:' and 'until:' provide the start and end times for the snaps taken
34
- first snap is taken at 'at:' time, then every <interval:> minutes thereafter until 'until:' is reached
35
Interval will only attempt snaps within a day, between times specified by 'at:' and 'until:'.
36
So this value, added to 'at:' time, should always yield a time less than 'until:', otherwise it is ignored.
37
38
until: defaults to '2359'
39
- the latest time that an interval-based snapshot can be created
40
41
retain: defaults to 4. This is the number of snapshots kept. 0 disables the schedule.
42
43
upload: defaults to no/False - yes/True uploads the snapshot to the object store associated with the filesystem
Copied!
Example snaptool.yml:
1
cluster:
2
auth_token_file: auth-token.json
3
hosts: vweka1,vweka2,vweka3
4
force_https: True # only 3.10+ clusters support https
5
verify_cert: False # default cert cannot be verified
6
7
filesystems:
8
fs01: default
9
fs02: Weekdays-6pm, Weekends-noon
10
11
schedules:
12
default:
13
monthly:
14
every: month
15
retain: 6
16
# day: 1 (this is default)
17
# at: 0000 (this is default)
18
weekly:
19
every: Sunday
20
retain: 8
21
# at: 0000 (this is default)
22
daily:
23
every: Mon,Tue,Wed,Thu,Fri,Sat
24
retain: 14
25
# at: 0000 (this is default)
26
hourly:
27
every: Mon,Tue,Wed,Thu,Fri
28
retain: 10
29
interval: 60
30
at: 9:00am
31
until: 5pm
32
Weekdays-6pm:
33
every: Mon,Tue,Wed,Thu,Fri
34
at: 6pm
35
retain: 4
36
Weekends-noon:
37
every: Sat,Sun
38
at: 1200
39
retain: 4
40
Copied!
Note: You may use the above example as a template for the snaptool.yml file or start with a copy from the GitHub repo (https://github.com/weka/snaptool) or the release tarball.

Snapshot naming

The format of the snapshot names is <schedulename>.YYMMDDHHMM, with the access point @GMT-YYYY.MM.DD-HH.MM.SS. For example, a snapshot might be named Weekends-noon.2103101200 and have the access point @GMT-2021.03.10-12.00.00. The snapshot name will be in the local timezone and the access point in GMT (In this example, the server timezone is set to GMT).
For grouped snapshots, the name will be <schedulegroupname>_<schedulename>.YYMMDDHHMM. The full name before the '.' can't be longer than 18 characters. For example, default schedule group with an hourly schedule in it might be named default_hourly.YYMMDDHHMM.
When deleting snapshots automatically, based on the retain: keyword, snapshots for a schedule and filesystem are sorted by creation time, and the oldest snapshots will be deleted until there are retain: snapshots left for the applicable Schedule and filesystem.
Note: snaptool is unable to distinguish between user-created and snapshot manager-created snapshots, other than by the name, so when creating user-created snapshots, name collisions with scheduled snapshot names must be avoided. If the same naming format is used, the user-created snapshots may be selected for deletion automatically.

Deploy the snapshot management tool with systemd

In a web browser, please visit https://github.com/weka/snaptool/releases to view the latest release. The snaptool-<release>.tar file in the release is a binary version and is the recommended download.
  • download and extract the tarball
  • edit the snaptool.yml configuration file (if one doesn't exist in the destination directory already). Default destination is /opt/weka/snaptool.
  • run the install script install.sh
An easy way if getting the tarball onto your system is via wget or curl of the tarball directly from GitHub. Right-click on the filename on the releases webpage and select Copy Link Address, then paste into a command line, like this:
1
wget https://github.com/weka/snaptool/releases/download/1.0.0/snaptool-1.0.0.tar
2
tar xvf snaptool-1.0.0.tar
3
cd snaptool
4
Copied!
You can also download the tarball with any browser and copy it to the destination system.
If this is the first time snaptool is installed on a system, edit the snaptool.yml configuration file (see above). Then run the included install.sh to install the unit file into systemd and start the service:
1
./install.sh
2
Copied!
Note: the installer will check for a valid cluster connection using the hosts in the snaptool.yml file. The installer will not proceed if the cluster connection test fails. Therefore, if this is the first time snaptool is installed, you must edit the snaptool.yml file to point to a valid weka cluster before running the installer.
If the service is already running locally, the installer will stop it, and preserve the existing snaptool.yml file before restarting the service.

Deploy the snapshot management tool in docker

The snaptool container is run in much the same way as other Weka Docker containers. The docker image can be downloaded from docker hub using docker pull wekasolutions/snaptool:latest. Then, edit/create the snaptool.yml configuration file in the current directory and run the container. Please see the docker_run.sh file in the tarball release for a sample docker run file that sets the required mounts and parameters for the docker image to run properly. The tarball release can be downloaded from:
The docker_run.sh file looks like this:
1
#!/bin/bash
2
# sample file for running snaptool as a docker container
3
# the wekasolutions/snaptool docker image can be downloaded from docker hub
4
#
5
# the config_file is expected to be in the current directory when running within docker.
6
# logs will be created in a 'logs' directory in the current directory.
7
#
8
config_file=snaptool.yml
9
time_zone=US/Eastern
10
auth_dir=$HOME/.weka
11
12
mkdir -p logs ; chown 472 logs
13
14
if [[ ! -f $config_file ]]; then echo "Config file '$config_file' missing. Exiting."; exit 1; fi
15
16
# some OS variants may not have this syslog option; if it doesn't exist, don't set it up
17
if [[ -e /dev/log ]]; then syslog_mount='--mount type=bind,source=/dev/log,target=/dev/log'; fi
18
19
docker run --network='host' --restart always -e TZ=$time_zone -d \
20
$syslog_mount \
21
--mount type=bind,source=$PWD,target=/weka \
22
--mount type=bind,source=$auth_dir,target=/weka/.weka,readonly \
23
--mount type=bind,source=/etc/hosts,target=/etc/hosts,readonly \
24
--name weka_snaptool \
25
wekasolutions/snaptool -vv -c $config_file
26
27
Copied!
When running in docker, the snaptool.yml file should be in the current working directory. A logs directory will be created in the current working directory for logging and snapshot journaling files.
