Events

This page describes the events available in the WekaIO system and how to work with them.

Overview

WekaIO events indicate relevant information concerning the WekaIO cluster and customer environment. Triggered by a customer operation or an environment change, events can be informational, indicate a problem in the system or indicate a (previous) problem that has been resolved.

Working with Events Using the GUI

Viewing Events

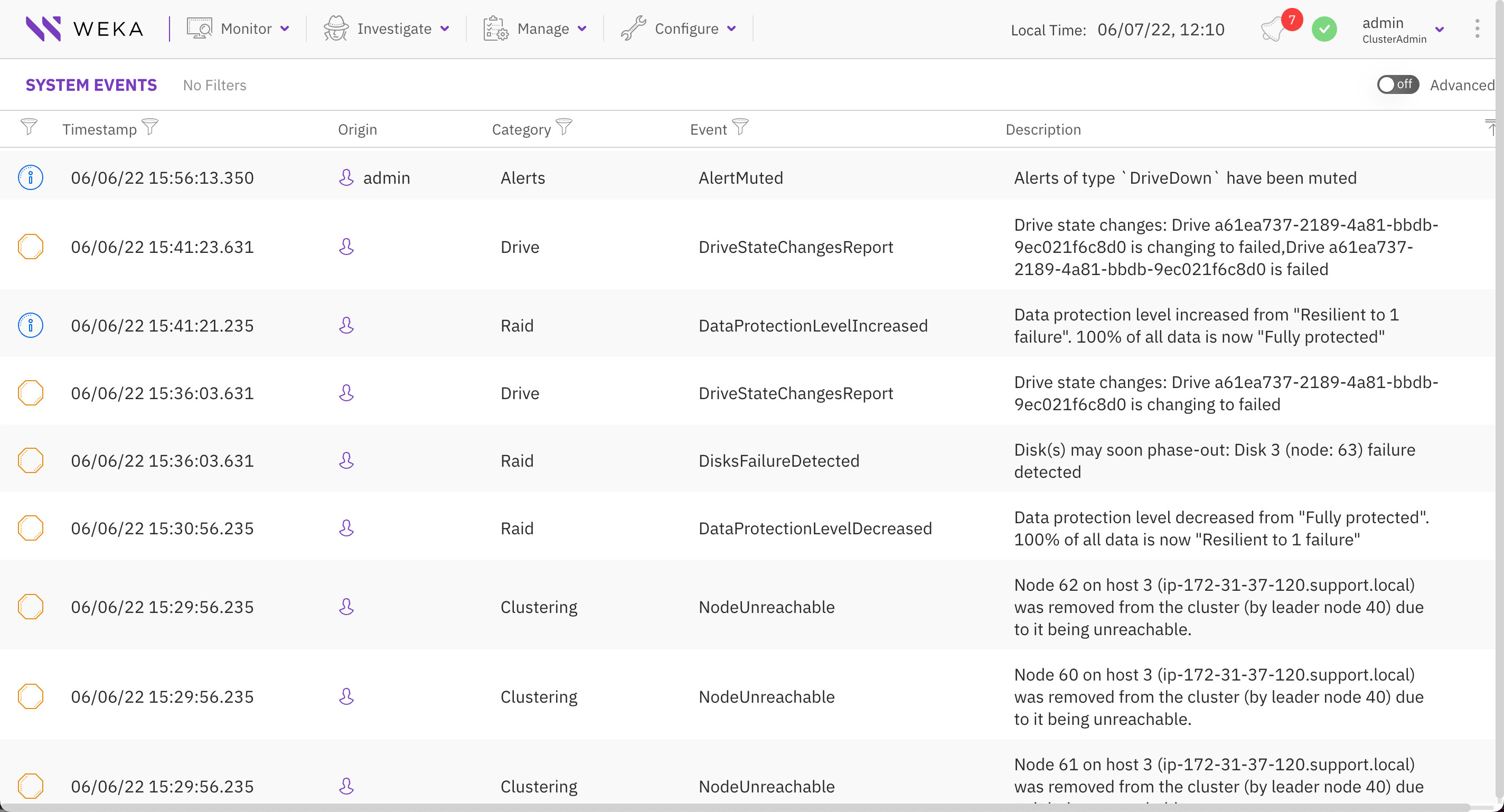

To view the events screen using the GUI, click the Events Log button on the left bar:

Events View Screen

Filtering Events

Events can be filtered by choosing a filter. Filtering can be performed according to event severity, category, IDs and timestamps. Selection of multiple filters is also possible (for event categories and event IDs).

Event Filtering

Working with Events Using the CLI

Viewing Events

Command: weka events

Use the following command line to list events in the WekaIO cluster:

weka events [--num-results num-results] [--start-time <start>] [--end-time <end>] [--severity severity] [--sort-order sort-order] [--fetch-order fetch-order] [--type-list type-list] [--exclude-type-list exclude-type-list] [--category-list category-list] [--by-digested-time] [--show-internal] [--raw-units] [--UTC]

Parameters in Command Line

Name

Type

Value

Limitations

Mandatory

Default

num-results

Integer

Maximum number of events to display

Positive integer.

0 shows all events.

No

50

start-time

String

Include events that occurred at this start time and later

Format: 5m, -5m, -1d, -1w, 1:00, 01:00, 18:30, 18:30:07, 2018-12-31 10:00, 2018/12/31 10:00, 2018-12-31T10:00, 9:15Z, 10:00+2:00

No

-365 days

end-time

String

Include events that occurred up to this time

Format: 5m, -5m, -1d, -1w, 1:00, 01:00, 18:30, 18:30:07, 2018-12-31 10:00, 2018/12/31 10:00, 2018-12-31T10:00, 9:15Z, 10:00+2:00

No

Set to a time represents 'now'

severity

String

Include events with this level of severity and higher

'info', 'warning', 'minor', 'major' or 'critical'

No

INFO

sort-order

String

Sort events by ascending or descending time

'asc' or 'dsc'

No

asc

fetch-order

String

Fetch from end-time backwards or from start-time forwards

'fw' or 'bw'

No

bw

type-list

String

Filter events by type (can be used multiple times)

Use weka events list-types to see available types

No

None

exclude-type-list

String

Filter-out events by type (can be used multiple times)

Use weka events list-types to see available types

category-list

String

Include only events matching the defined category

Categories can be Alerts, Cloud, Clustering, Drive, Events, Filesystem, IO, InterfaceGroup, Licensing, NFS, Network, Node, ObjectStorage, Raid, Statistics, System, Upgrade, User

No

All

digested-time

Boolean

Query and sort results by digested time

No

False

show-internal

Boolean

Also displays internal events

No

False

raw-units

Boolean

Print values in raw units (bytes, seconds, etc.)

No

Human-readable format, e.g 1KiB 234MiB 2GiB

UTC

Boolean

Print times in UTC

No

Host's local time

Viewing Local Events

Command: weka events list-local

Use the following command line to list recent events on the specific host running the command from (can be useful for cases there is no connectivity to support cloud, no connectivity from a specific host, or for hosts which are not part of the cluster):

weka events list-local [--start-time <start>] [--end-time <end>] [--next next] [--stem-mode] [--show-internal] [--raw-units] [--UTC]

Parameters in Command Line

Name

Type

Value

Limitations

Mandatory

Default

start-time

String

Include events that occurred at this start time and later

Format: 5m, -5m, -1d, -1w, 1:00, 01:00, 18:30, 18:30:07, 2018-12-31 10:00, 2018/12/31 10:00, 2018-12-31T10:00, 9:15Z, 10:00+2:00

No

-365 days

end-time

String

Include events that occurred up to this time

Format: 5m, -5m, -1d, -1w, 1:00, 01:00, 18:30, 18:30:07, 2018-12-31 10:00, 2018/12/31 10:00, 2018-12-31T10:00, 9:15Z, 10:00+2:00

No

Set to a time represents 'now'

next

String

Identifier to the next page of events

As returned in the previous call to weka events list-local

No

stem-mode

Boolean

Displays events when the host has not been attached to the cluster

No

False

show-internal

Boolean

Also displays internal events

No

False

raw-units

Boolean

Print values in raw units (bytes, seconds, etc.)

No

Human-readable format, e.g 1KiB 234MiB 2GiB

UTC

Boolean

Print times in UTC

No

Host's local time

List of Events
